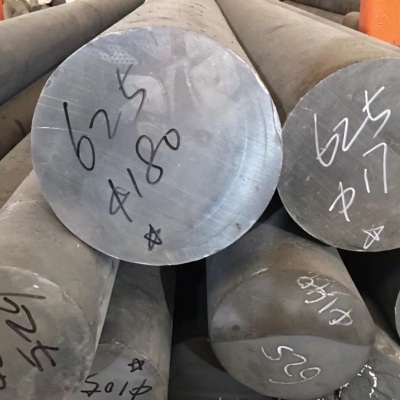

Inconel 625 Round Bar
Solid round sections for machined components, shafts, fasteners and marine parts.
View Inconel 625 Round Bar →Inconel 625 Bar and Rod for Corrosion & High Heat
UNS N06625 nickel-chromium-molybdenum bar and rod for marine, aerospace, chemical processing, oil and gas and other corrosion-critical service.
Certified Inconel 625 Grades
Specifically, we supply fully certified UNS N06625 material with heat-number traceability and EN 10204 3.1 mill test reports.
Custom Bar and Rod
We manufacture Inconel 625 bar and rod to your diameters, condition, tolerances and surface finish.
Fast Global Delivery
Therefore, our team ships worldwide with responsive lead times and complete export documentation on every shipment.
PRODUCT OVERVIEW

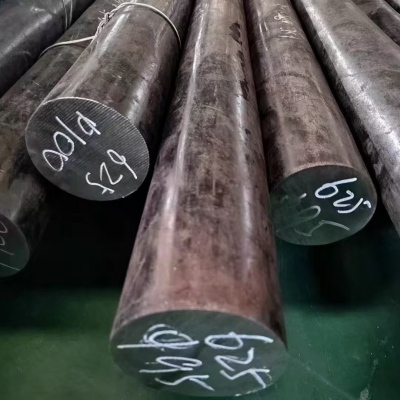

About Inconel 625 Bar and Rod
Inconel 625 bar and rod is a solid-solution-strengthened nickel-chromium-molybdenum alloy. Moreover, it keeps very high strength in seawater, hot acids and high-temperature gas paths up to about 980 °C. Therefore, fabricators specify Inconel 625 bar for marine, aerospace, chemical, oil and gas and power-generation parts.
PRODUCT FEATURES
Key Features of Inconel 625 Bar and Rod
Inconel 625 bar and rod is a nickel-chromium-molybdenum-niobium alloy. Solid-solution hardening gives it very high strength. It resists pitting, crevice corrosion and chloride stress-corrosion cracking. UNS N06625 is supplied to ASTM B446 / ASME SB446. Sections include round, square, hex, flat and forged bar for marine, aerospace, chemical, oil and gas and power use.
Inconel 625
Outstanding Pitting Resistance
Inconel 625 bar and rod resists localized attack in seawater, chlorides and oxidizing acidic media.
01
High Strength Without Aging
Solid-solution hardening delivers strength with no precipitation heat treatment.
02
Wide Service Temperature Range
Specifically, the alloy holds dependable mechanical properties from cryogenic conditions up to approximately 980 °C.
03
Excellent Weldability
We weld Inconel 625 bar without preheat and generally use it without post-weld heat treatment.
04
Fatigue and Thermal-Fatigue Resistance
The alloy suits cyclic loading and repeated thermal cycling in service.
05
Good Machinability in the Annealed Condition
Moreover, annealed Inconel 625 bar cuts consistently for turned and precision-machined components.
06
Full Material Traceability
Heat numbers and EN 10204 3.1 documentation accompany every bar delivery.
07
WHY CHOOSE US
Why Choose Inconel 625
When you source Inconel 625 bar and rod, Southerly Alloy acts as your supply partner. Specifically, you get fully certified UNS N06625 material with heat-number traceability under our ISO 9001 system. As a result, we process your bar to the ASTM B446 condition you specify.
01
Mill-Certified Material
Inconel 625 bar and rod carries full heat-number traceability, stable lead times and no third-party markups.
02
Certified Quality Systems
ISO 9001 controls our production, and every heat ships with EN 10204 3.1 inspection certificates.
03
Custom Manufacturing
We produce diameters, cut lengths, straightness, finish and packing to your drawing and order quantity.
04
Reliable Export Service
Furthermore, experienced logistics and complete documentation support on-schedule global delivery.
MANUFACTURING PROCESS
Reliable Production For Critical Applications
We process every Inconel 625 bar from vacuum melting to final inspection to match your ordered ASTM B446 condition. Specifically, each stage carries its own check and record. As a result, the material you receive keeps full heat-number traceability.
01
Raw Material Preparation
We select and weigh nickel, chromium, molybdenum and niobium charges to meet the required UNS N06625 chemistry with controlled residuals.
02
Vacuum Induction Melting (VIM)
Melting under vacuum minimizes gas pickup and maintains tight control of composition.
03
Electroslag Remelting (ESR)
Where specified, ESR refines the electrode to reduce inclusions and improve ingot uniformity for critical service.
04
Hot Forging and Rolling
We convert the ingot to billet, then forge or hot roll it to the required bar and rod section with controlled working.
05
Solution Annealing
Annealing develops the specified balance of strength, ductility and corrosion resistance for the ordered condition.
06
Cold Working and Finishing
Cold drawing, peeling, straightening or centerless grinding gives tighter dimensions and the required surface finish.
07
Final Inspection
We verify chemical composition, mechanical properties, dimensions and surface before release.
Manufacturing Facility
MANUFACTURING CAPABILITY
Advanced Production For Nickel Alloy Products
Southerly Alloy supplies Inconel 625 bar and rod in common ASTM B446 forms and conditions. Specifically, sections cover round, square, hex, flat and forged bar in hot-worked, cold-worked and annealed material. We match diameter, cut length, straightness and finish to your purchase order.
20,000+ m²
Factory Area
Specifically, modern production facilities and dedicated workshops support Inconel 625 bar and rod output.
50+
Production Machines
Advanced equipment for precision alloy manufacturing of Inconel 625 bar and rod.
600 Tons
Monthly Capacity
Inconel 625 bar and rod output across standard and custom sizes.
30+
Technical Engineers
Experienced engineers who support your Inconel 625 bar and rod specification.
QUALITY ASSURANCE
Strict Quality Control From Production To Delivery
We inspect every Inconel 625 bar and rod batch before release under our ISO 9001 system. Specifically, our inspectors verify chemistry, mechanical properties, dimensions and surface finish. Moreover, EN 10204 3.1 documents accompany each delivery, and third-party inspection is available.
01
Chemical Analysis
We verify composition by spectrometer against the required UNS N06625 limits.
02
Mechanical Testing
Tensile, yield, elongation and hardness results back the ordered condition.
03
Dimensional and NDT Checks
We check size, straightness and surface condition, adding UT / PMI on request.
04
Documentation
EN 10204 3.1 mill test certificates with heat-number traceability accompany every delivery.
PRODUCT FORMS
Available Product Forms
We supply Inconel 625 bar and rod in round, square, hex, flat and forged sections to ASTM B446. Specifically, each form below links to a dedicated Inconel 625 page.
02
Inconel 625 Square Bar
Square sections for structural supports, fixtures and machined components.
View Inconel 625 Square Bar →
03
Inconel 625 Hex Bar
Hexagonal bar for precision machining and multi-flat fastener blanks.
View Inconel 625 Hex Bar →
04
Inconel 625 Flat Bar
Flat sections for welded structures where you specify width and thickness.
View Inconel 625 Flat Bar →
05
Inconel 625 Rectangle Bar
Rectangular bar for structural and machined members.
View Inconel 625 Rectangle Bar →
06
Inconel 625 Special-Profile Bar
Bespoke bar profiles to customer drawings for proprietary parts.
View Inconel 625 Special-Profile Bar →
APPLICATIONS
Engineered For Demanding Industries
Engineers specify Inconel 625 bar and rod wherever components face seawater, aggressive chemical media or high-temperature oxidation together with mechanical loading. Specifically, typical industries include marine engineering, aerospace, chemical processing, oil and gas, nuclear and power generation.
Discuss Your Application →
01
Marine and Seawater Components
Propeller shafts, pump shafts and fasteners face chloride pitting and crevice attack.
02
Aerospace Ducting and Exhausts
Engine ducting, thrust-reverser systems and exhaust parts serve in high-temperature service.
03
Chemical Processing Equipment
Reactor internals and valve components work in oxidizing acids and chloride media.
04
Oil and Gas Equipment
Downhole and subsea components need strength and corrosion resistance together.
05
Heat-Treatment Equipment
Furnace fixtures and muffles need oxidation resistance at elevated temperatures.
06
Pollution-Control Systems
Flue-gas desulfurization components endure wet, chloride-laden environments.
07
Power Generation
Turbine shroud rings and boiler-related components face heat and corrosive exposure.
08
Fasteners and Fittings
We machine high-strength Inconel 625 bar into bolts, studs and custom fittings.
TECHNICAL INFORMATION
Technical Specifications
Detailed technical information including chemical composition, mechanical properties, standards and available dimensions.
Chemical Composition
The composition limits below follow published ASTM B446-related data for UNS N06625. However, the governing purchase specification always takes precedence for final acceptance on the bar and rod range.
| Element | Content |
|---|---|
| Nickel (Ni) | Balance |
| Chromium (Cr) | 20.0–23.0% |
| Molybdenum (Mo) | 8.0–10.0% |
| Niobium + Tantalum (Nb + Ta) | 3.15–4.15% |
| Iron (Fe) | 5.00% max. |
| Cobalt (Co) | 1.00% max. |
| Carbon (C) | 0.10% max. |
| Manganese (Mn) | 0.50% max. |
| Silicon (Si) | 0.50% max. |
| Phosphorus (P) | 0.015% max. |
| Sulfur (S) | 0.015% max. |
| Aluminum (Al) | 0.40% max. |
| Titanium (Ti) | 0.40% max. |
Mechanical Properties
ASTM B446 furnishes UNS N06625 rod and bar in two heat-treated grades. Grade 1 (annealed) normally serves up to about 593 °C and carries higher minimum room-temperature strength; Grade 2 (solution annealed) normally serves above about 593 °C where the design needs creep and rupture resistance. Minimum room-temperature properties are listed below — Grade 1 requirements vary with product size.
| Grade / Condition | Product Size | Tensile Strength | Yield Strength, 0.2% Offset | Elongation |
|---|---|---|---|---|
| Grade 1 — Annealed (≥871 °C / 1600 °F) | Up to 101.6 mm (4 in.) dia. | ≥120 ksi (827 MPa) | ≥60 ksi (414 MPa) | ≥30% |
| Grade 1 — Annealed (≥871 °C / 1600 °F) | Over 101.6 to 254 mm (4–10 in.) dia. | ≥110 ksi (758 MPa) | ≥50 ksi (345 MPa) | ≥25% |
| Grade 2 — Solution annealed (≥1093 °C / 2000 °F) | All sizes | ≥100 ksi (690 MPa) | ≥40 ksi (276 MPa) | ≥30% |
- Grade 1 requires annealing at 871 °C (1600 °F) minimum. Grade 2 requires solution annealing at 1093 °C (2000 °F) minimum, with or without a subsequent stabilization anneal at 982 °C (1800 °F) minimum to increase sensitization resistance. The applicable ASTM B446 grade, size and condition govern final acceptance.
Physical Properties
| Property | Value |
|---|---|
| Alloy | Inconel 625 |
| UNS | N06625 |
| Werkstoff | 2.4856 |
| Density | Approx. 8.44 g/cm³ |
| Melting Range | Approx. 1290–1350°C |
| Alloy Type | Nickel-chromium-molybdenum |
| Strengthening | Solid-solution (Mo, Nb) |
Standards
| Standard | Product / Application |
|---|---|
| ASTM B446 | Nickel-chromium-molybdenum-niobium alloy bar and rod |
| ASME SB446 | ASME specification for bar and rod |
| ASTM B443 | Related UNS N06625 plate, sheet and strip specification |
| ASTM B444 | Related UNS N06625 seamless pipe and tube specification |
| SAE AMS 5666 | Nickel alloy 625 bar, forgings and rings (annealed) |
| DIN 17752 / 2.4856 | Nickel alloy bar — European designation and standard |
| ISO 9723 / 9724 | Nickel and nickel alloy bar and rod |
| BS 3076 NA21 | Nickel alloy bar |
| VdTÜV 499 | Pressure equipment approval (Europe) |
ASTM B446 is the principal specification for Inconel 625 bar and rod. In addition, SAE AMS 5666 covers much aerospace-related procurement, and ASME SB446 applies where pressure-equipment code compliance is required.
Dimensions
| Product Form | Typical Supply | Length |
|---|---|---|
| Round Bar | 6–500 mm dia. | Single Random, Double Random or Custom |
| Round Rod | 3–50 mm dia. | Single Random, Double Random or Custom |
| Bright Bar | 6–150 mm dia. | Single Random, Double Random or Custom |
| Square Bar | 10–150 mm | Single Random, Double Random or Custom |
| Hex Bar | 10–150 mm A/F | Single Random, Double Random or Custom |
| Flat Bar | 3–100 mm thick × 10–300 mm wide | Single Random, Double Random or Custom |
| Forged Bar | 100–500 mm dia. or custom forged section | Custom |
| Precision-Ground Rod | 3–100 mm dia., tight tolerance | Custom |
Available dimensions depend on the manufacturing route, standard, material condition, and order quantity. Please confirm your required diameter, section, and length in the inquiry.
Surface Finishes
| Surface Condition | Typical Characteristics / Applications |
|---|---|
| Hot Finished | Supplied in the as-hot-worked condition; suitable for general industrial applications and subsequent machining |
| Cold Drawn | Improved dimensional accuracy and surface finish, with increased strength from cold working |
| Bright Finished | Smooth, bright surface with improved dimensional control; suitable for applications requiring a cleaner surface appearance |
| Peeled | Machined surface with controlled diameter and improved surface uniformity, typically supplied for further machining or finishing |
| Centerless Ground | Precision-ground surface with close dimensional tolerances and consistent diameter |
| Polished | Fine surface finish for applications requiring reduced surface roughness and improved appearance |
| Rough Turned | Machined surface used for large-diameter or forged bars, providing controlled dimensions with machining allowance for further processing |
TECHNICAL DOCUMENTATION
Download Technical Datasheet
Get detailed information including specifications, standards, dimensions and material properties.
HOW TO START
Start Your Order in 6 Simple Steps
A clear process keeps you informed at every step from first inquiry to delivered material. Therefore, most Inconel 625 bar orders move from inquiry to shipment in under three weeks.
1
Send Your Inquiry
Provide your Inconel 625 grade, product form, diameter, length, quantity and required standard.
2
Confirm the Specification
State ASTM B446, ASME SB446 or AMS 5666 together with the material condition and finish.
3
Review the Quotation
Receive pricing that reflects dimensions, quantity, route, inspection and destination.
4
Confirm the Order
Approve the technical spec, commercial terms, documentation and production plan.
5
Production and Inspection
We manufacture and inspect your Inconel 625 bar and rod to the agreed specification.
6
Shipment and Documentation
Receive the material with EN 10204 3.1 MTC, heat-number traceability and export documentation.
CERTIFICATIONS & QUALITY DOCUMENTATION
Certifications & Quality Documentation
Our production and inspection processes are certified to international standards, and every delivery ships with EN 10204 3.1 mill test certificates.
ISO 9001:2015
Quality Management System
PED 2014/68/EU
Pressure Equipment Directive
ASTM / ASME
Material Standards Compliance
EN 10204 3.1
Mill Test Certificates
FAQ
Frequently Asked Questions
Which ASTM specification applies to Inconel 625 bar and rod?
Inconel 625 bar and rod commonly follows ASTM B446, with ASME SB446 for pressure applications and SAE AMS 5666 for aerospace procurement.
How is the price of Inconel 625 bar calculated?
We quote price per kg based on diameter, length, quantity and the prevailing nickel surcharge; every quotation states the Incoterm clearly.
Can Inconel 625 bar be welded?
Yes. We weld Inconel 625 without preheat and generally use it without post-weld heat treatment, which simplifies fabrication of bar components and assemblies.
Is Inconel 625 bar hard to machine?
Inconel 625 is machinable in the annealed condition with carbide tooling and rigid setups; the alloy work-hardens, so consistent feed and depth of cut give the best results.
Can Inconel 625 bar resist rusting and seawater attack?
Inconel 625 resists pitting, crevice corrosion and chloride stress-corrosion cracking, which is why engineers specify UNS N06625 bar for marine and chloride-laden service.
What applications use Inconel 625 bar?
Typical applications include marine shafts and fasteners, aerospace ducting, chemical reactor components, oil and gas equipment, and pollution-control systems.
What is your MOQ for Inconel 625 bar?
Single-piece orders are available for common sizes.
What are your trade terms for Inconel 625 bar?
We mainly quote on FOB terms; EXW and CIF are also available depending on destination and order value.
What is the lead time for Inconel 625 bar?
Stock sizes ship in 7-15 days. Custom diameters and special finishes are a little longer.
Do you provide EN 10204 3.1 or 3.2 certificates?
Yes. Every delivery includes EN 10204 3.1 mill test certificates, and we arrange 3.2 certificates with third-party-endorsed inspection on request.
REQUEST FOR QUOTATION
Need A Custom Alloy Solution?
Southerly Alloy supplies Inconel 625 bar and rod to ASTM B446 in standard and custom sizes. Send your Inconel 625 grade, dimensions, quantity and delivery needs to receive a quotation. Moreover, our team confirms the grade and condition, then returns pricing with clear Incoterms.
