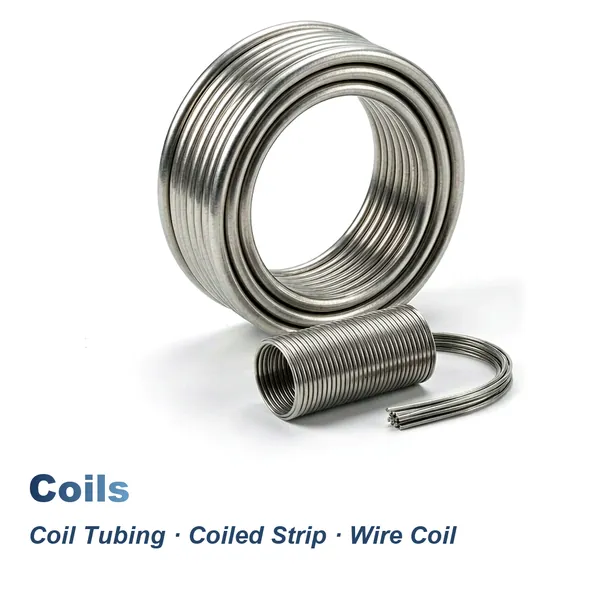

Nickel Alloy Coils and Strip
Nickel alloy coil and strip supplied to order across 16 grades - thin-gauge strip for lining and forming.
We supply nickel alloy coils and strip on request through our network of partner mills, covering Inconel, Hastelloy, Monel, Incoloy, Alloy 20 and Alloy 59 as well as Nickel 200 / 201. Thin-gauge strip and coiled sheet are used where corrosion resistance must be combined with formability - tank linings, bellows, heat-exchanger wrap and precision stamping.
Nickel alloys keep useful strength from cryogenic temperatures up to around 700 C and resist oxidation, scaling and a wide range of acids and salts, so strip performs in aggressive service that ordinary stainless cannot. Precipitation-hardened grades add strength; solid-solution grades lead on formability and broad corrosion resistance.
Coil and strip are supplied from 0.1 mm up to 3 mm thickness, in widths up to 1000 mm, annealed or bright-annealed, with slitting and edge dressing available. Tell us your grade, gauge, width and quantity and we will source it from the appropriate mill and ship with mill test certificate.
Nickel Alloy Grades We Supply
Specifications & Standards
| Form | Common ASTM | Typical size |
|---|---|---|
| Strip | B168 / B443 / B575 | 0.1-3 mm thick |
| Coil (strip) | B168 / B443 / B575 | width up to 1000 mm |
| Light-gauge sheet coil | B168 / B575 | made to order |
All 16 grades above are available as coil and strip on request; standards shown are the most common procurement specifications. Equivalents such as AMS, EN or GB may be supplied on request.
Applications
Nickel alloy coil and strip are formed and lined into components that must resist attack in aggressive service:
Heat-exchanger & tank lining
corrosion barriers in vessels and coils (625, C-276, Alloy 20).
Bellows & expansion joints
flexible elements in corrosive piping (625, 600).
Precision stamping
spring and clip parts needing formability plus strength (625, X-750).
Battery & electronics
high-purity foil and strip (Nickel 200/201, 625).
Aerospace shim & spacer
thin formed details (625, 718).
Chemical & pharmaceutical
liners and gaskets (C-276, Alloy 20).
Frequently Asked Questions
What thickness and width can you supply for nickel alloy coil and strip?
Strip from 0.1 mm up to 3 mm thickness, in widths up to 1000 mm; slitting and edge dressing are available, made to order.
Are coils a stock or made-to-order item?
Coil and strip are supplied to order through our partner mills rather than held in open stock - lead time depends on grade, gauge and width.
Do you provide MTC / EN 10204 3.1?
Yes - material ships with mill test certificate from the producing mill, and third-party inspection can be arranged.
What is the typical lead time?
Made-to-order coil is typically a few weeks depending on grade, gauge, width and certification.
Can you slit or dress edges?
Yes - slitting to width and edge dressing (burr-free, rounded) are available on request.
