Hastelloy C-22 Hot-Rolled Plate
Solution-annealed plate from 4.8 mm up for vessel shells, scrubber liners, and ducting.
Request Availability →Hastelloy C-22 Plate and Sheet — B575 Flat Supply
UNS N06022 flat product to B575 — hot-rolled plate, cold-rolled sheet, and strip for vessels and scrubbers.
Flat Product, One Window
Plate, sheet, and strip between 0.5 mm and 100 mm sit under a single UNS N06022 purchase route.
Linings for Oxidizing Media
In addition, chromium above 20% lets one lining serve a vessel whose process chemistry swings both ways.
Profiled Blanks
Besides, cutting lines profile, shear, or saw plate to the geometry your fabricators draw.
PRODUCT OVERVIEW

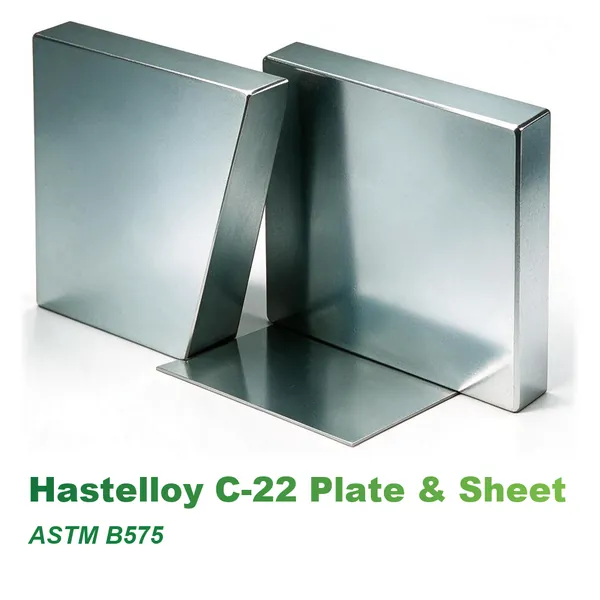

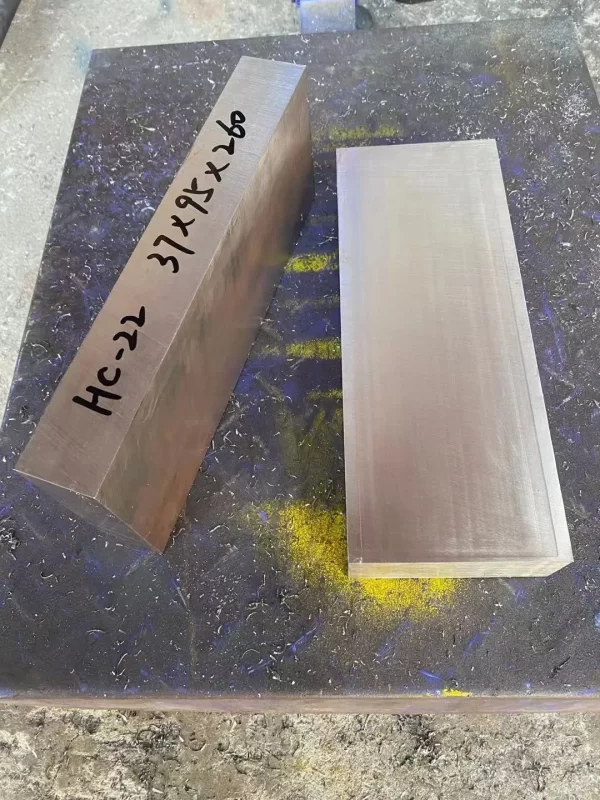

About Hastelloy C-22 Plate and Sheet
Hastelloy C-22 Plate and Sheet supplies UNS N06022 flat product for vessel shells, ducting, and scrubber liners. Chromium above 20% carries oxidizing media, while molybdenum and tungsten hold the reducing side. Flat-rolled gauges follow ASTM B575 alongside B906 general requirements.
For the full grade file, start at the Hastelloy C-22 hub. The Hastelloy C-22 Bar and Rod and Hastelloy C-22 Pipe and Tube pages carry the other two forms.
PRODUCT FEATURES
Key Features of Hastelloy C-22 Plate and Sheet
Hastelloy C-22 plate, sheet, and strip covers UNS N06022 to ASTM B575 in the solution-annealed condition, cut to your blank list. Gauges run from 0.5 mm coil to 100 mm plate. Chromium above 20% makes flat product a lining choice for scrubber shells and reaction vessels that face oxidizing media. An EN 10204 3.1 certificate and heat-level traceability accompany each delivery.
Hastelloy C-22
Oxidizing-Medium Linings
Above all, nitric acid, wet chlorine, and ferric chloride duty is why a fabricator picks this plate over a lower-chromium grade.
01
Reducing-Acid Coverage
In addition, molybdenum and tungsten keep hydrochloric, sulphuric, and phosphoric service inside the same lining.
02
Chloride Pitting Resistance
Moreover, a molybdenum level near 13% holds pitting and crevice attack off wetted plate faces in brine and seawater.
03
Annealed at Every Gauge
Hot-rolled plate, cold-rolled sheet, and strip leave the mill water quenched.
04
Forming Without Re-Heat
Cold rolling, pressing, and welding carry on without an aging or stress-relief step.
05
Gauge Span in One Order
As a result, plate at 100 mm and coil at 0.5 mm come from the same enquiry.
06
Heat-Level Traceability
Finally, every certificate names a heat number beside its chemistry and mechanical results.
07
WHY CHOOSE US
Why Choose Hastelloy C-22
Flat C-22 sells on gauge discipline rather than on tonnage. We fix thickness, width, and edge condition against the forming step that follows your plate. Cutting and inspection scope then attach to the same order.
01
Gauge Set by the Forming Plan
Thickness and width follow the rolling or pressing step your shop runs next, not a stock table.
02
Profiling on Request
Plasma, waterjet, and shear cutting produce blanks, rings, and circles from any stocked gauge.
03
Inspection Attached to the Order
Above all, ultrasonic testing, PMI, and third-party witness join the job where the service requires it.
04
Export Paperwork Handled
Moreover, packing, Incoterm, and destination documents come from the same desk.
MANUFACTURING PROCESS
Reliable Production For Critical Applications
Melt, slab rolling, cold rolling, and a water-quenched anneal all precede the final cut on flat C-22 product. Still, the sequence shifts with the ordered gauge, standard, and acceptance level.
01
Charge and Melt
We weigh the charge to the N06022 window and hold carbon at 0.015% max through the melt.
02
Refining
AOD or vacuum treatment pulls carbon, silicon, and gas down, while ESR serves heats bound for critical duty.
03
Slab Rolling
The mill reduces slabs to plate gauge on a schedule written for the ordered thickness.
04
Sheet and Strip Rolling
Likewise, cold mills take sheet and strip to final gauge, tightening tolerance and surface finish.
05
Solution Annealing
The line holds material at 1121 °C, then quenches it in water to dissolve intermetallic phases.
06
Cutting and Release
Leveling, cutting to size, and a final inspection against the ordered acceptance level close out the batch.
Manufacturing Facility
MANUFACTURING CAPABILITY
Advanced Production For Nickel Alloy Products
Flat C-22 stock runs from 0.5 mm coil through 100 mm plate. We agree thickness, width, length, and edge condition before the mill starts rolling. Consequently, the plan you approve at quotation reaches dispatch unchanged.
20,000+ m²
Factory Area
Plate rolling, annealing, and leveling lines operate on one site.
50+
Production Machines
Hot mills, cold mills, shears, and levelers sit in one quality system.
600 Tons
Monthly Capacity
Flat-product tonnage each month across standard and made-to-order gauges.
30+
Technical Engineers
Metallurgists answer gauge, condition, and cutting questions before the order opens.
QUALITY ASSURANCE
Strict Quality Control From Production To Delivery
Chemistry, mechanics, gauge, and surface clear inspection before a plate leaves the bay. The whole sequence runs inside our ISO 9001 system. Beyond that, each delivery carries a mill certificate, and third-party inspection joins the order when required.
01
Chemistry Checked per Heat
Spectrographic analysis holds the N06022 window, with carbon and silicon printed on the mill certificate.
02
Tensile and Elongation Results
Mechanical values come from the gauge and condition actually shipped.
03
Gauge and Flatness Records
We file thickness, flatness, and edge quality, and ultrasonic testing joins them where specified.
04
Traceability Pack
Consequently, a plate reaches its melting charge through the heat number on the certificate.
PRODUCT FORMS
Available Product Forms
Four flat-product forms span the UNS N06022 range, each with its own finishing route under ASTM B575.
02
Hastelloy C-22 Cold-Rolled Sheet
Sheet between 0.5 and 6.35 mm gives a smoother finish for fabricated equipment and linings.
Request Availability →
03
Hastelloy C-22 Strip and Coil
Similarly, coil and strip in the same gauge band arrive slit to width for roll forming and stamping.
Request Availability →
04
Cut Blanks
Circles, rings, and profiled blanks cut from any stocked gauge to your drawing.
Request Availability →
APPLICATIONS
Engineered For Demanding Industries
Wetted surfaces in these vessels face acid and chloride attack at the same time. Thickness and blank size therefore follow the structure rather than a pressure rating.
Discuss Your Application →
01
FGD Scrubber Shells
Absorber walls, ducting, and stack liners for chloride-laden flue gas.
02
Reaction and Storage Vessels
Also, shell plate for reactors that run mixed mineral acids.
03
Heat-Exchanger Shells and Heads
Plate that holds pressure on exchangers running acid and chloride duty.
04
Tank Linings and Clad Plate
Lining stock for hypochlorite, brine, and acid storage tanks.
05
Pulp Bleach Plant Washers
Hood plate and washer parts for chlorine dioxide circuits.
06
Phosphoric Acid Evaporator Bodies
Vessel plate for wet-process concentration trains.
07
Chlorine Dioxide Generators
Pressure plate for generator vessels and their piping spools.
08
Pharmaceutical Vessel Plate
Polished sheet serves reactor shells that must keep metal pickup low.
09
Waste Treatment and Ducting
Stack liners, dampers, and duct plate for acidic flue products.
TECHNICAL INFORMATION
Technical Specifications
Detailed technical information including chemical composition, mechanical properties, standards and available dimensions.
Chemical Composition
The UNS N06022 window below governs the B575 flat-rolled family. Chromium above 20% sets the oxidizing performance, molybdenum and tungsten carry the reducing and pitting side, and carbon stays at 0.015% max so welded seams keep their resistance. Nevertheless, the purchase specification in force decides acceptance.
| Element | Content |
|---|---|
| Nickel (Ni) | Balance |
| Chromium (Cr) | 20.0–22.5% |
| Molybdenum (Mo) | 12.5–14.5% |
| Tungsten (W) | 2.5–3.5% |
| Iron (Fe) | 2.0–6.0% |
| Cobalt (Co) | 2.50% max. |
| Manganese (Mn) | 0.50% max. |
| Phosphorus (P) | 0.020% max. |
| Sulfur (S) | 0.020% max. |
| Vanadium (V) | 0.35% max. |
| Silicon (Si) | 0.08% max. |
| Carbon (C) | 0.015% max. |
Mechanical Properties
ASTM B575 lists one condition for this grade, so the values below belong to solution-annealed flat product. Hardness appears in the standard for guidance only, and we record it for information rather than acceptance.
| Product Form | Standard | Condition | Tensile Strength | Yield Strength, 0.2% Offset | Elongation |
|---|---|---|---|---|---|
| Hot-rolled plate | ASTM B575 | Solution annealed | ≥690 MPa (100 ksi) | ≥310 MPa (45 ksi) | ≥45% |
| Cold-rolled sheet and strip | ASTM B575 | Solution annealed | ≥690 MPa (100 ksi) | ≥310 MPa (45 ksi) | ≥45% |
| Cut blanks and profiled plate | ASTM B575 | Solution annealed | ≥690 MPa (100 ksi) | ≥310 MPa (45 ksi) | ≥45% |
C-22 carries no aerospace AMS document, so aerospace flat product follows the project specification or the ASTM document named on the order. Confirm the ordered condition at enquiry so we quote the right document.
Physical Properties
| Property | Value |
|---|---|
| Alloy | Hastelloy C-22 |
| UNS | N06022 |
| Werkstoff | 2.4602 |
| Density | Approx. 8.69 g/cm³ |
| Melting Range | Approx. 1357–1399 °C |
| Elastic Modulus | Approx. 206 GPa |
| Thermal Conductivity | Approx. 10.1 W/m·°C at 20 °C |
| Specific Heat | Approx. 414 J/kg·°C |
| Expansion Coefficient | Approx. 12.4 µm/m·°C (20–100 °C) |
| Electrical Resistivity | Approx. 1.14 µΩ·m at 20 °C |
| Alloy Type | Nickel-chromium-molybdenum with tungsten |
Standards
| Standard | Product / Application |
|---|---|
| ASTM B575 / ASME SB575 | Plate, sheet, and strip, solution annealed and descaled |
| ASTM B906 | General requirements for flat-rolled nickel alloy product |
| ASTM B574 / B564 / B366 | Bar and rod, forgings, and wrought fittings in the same grade |
| ASTM B622 / B619 / B626 | Seamless and welded tubular product in the same grade |
| NACE MR0175 / ISO 15156 | Sour service in oil and gas production |
| DIN 17750 | Nickel alloy plate, sheet, and strip, W.Nr. 2.4602 |
| ISO 6208 | Nickel and nickel alloy plate, sheet, and strip |
| UNS N06022 · W.Nr. 2.4602 · NiCr21Mo14W · NS334 | Designations |
ASTM International issues the flat-rolled documents. Besides, the ASME SB575 edition governs wherever a vessel falls under pressure-code jurisdiction.
Exposure between roughly 650 and 1090 °C during fabrication can precipitate intermetallic phases, so hot forming needs a follow-up solution anneal. Our engineers review that step with your shop before the plate leaves.
Dimensions
| Product Form | Typical Supply Range | Length |
|---|---|---|
| Hot-rolled plate | 4.8–100 mm thick, widths to 2000 mm | Cut to length and width |
| Cold-rolled sheet | 0.5–6.35 mm thick, widths to 1500 mm | Cut to length and width |
| Strip and coil | 0.5–6.35 mm thick, slit to width | Coil or custom lengths |
| Cut blanks | Any stocked gauge | To customer drawing |
Gauges beyond the listed windows depend on slab and coil supply. Therefore, confirm gauge, width, edge finish, and condition at enquiry so we can price the route accurately.
Surface Finishes
| Surface Condition | Typical Characteristics / Applications |
|---|---|
| Solution Annealed & Pickled | Standard delivery for lining, vessel, and duct fabrication |
| Bright Annealed | Scale-free surface for clean or visible service |
| Pickled Only | Acid-descaled finish for general industrial work |
| Polished | Reduced roughness for product-contact and hygienic duty |
| Mill Finish | Hot-rolled surface for parts machined after delivery |
TECHNICAL DOCUMENTATION
Download Technical Datasheet
Get detailed information including specifications, standards, dimensions and material properties.
HOW TO START
Start Your Order in 6 Simple Steps
Flat-product orders normally ship within two to four weeks of release, and heavy plate runs longer. Price settles once thickness, condition, and cutting scope match your fabrication plan.
1
Send the Enquiry
Give thickness, width, length, quantity, and condition, along with the vessel or duct involved.
2
Pick the Standard
ASTM B575 covers industrial flat product, and B906 supplies the general requirements behind it.
3
Set the Condition and Cut
Solution-annealed stock forms readily, so we agree blank geometry before the mill rolls.
4
Review the Offer
The quotation sets out rolling route, cutting, testing, document scope, and Incoterm.
5
Rolling and Release
Rolling and annealing come first, then testing to the level agreed when the order was placed.
6
Shipment and Papers
The consignment leaves with its 3.1 certificate, packing list, and export papers.
What Our Clients Say
Feedback from buyers and engineers who source nickel alloy materials from Southerly Alloy.
★★★★★
“The scrubber shell plate arrived flat and cut to our blank list, and the chromium figure on the certificate matched our incoming check.”
★★★★★
“Reactor shell sheet met its thickness tolerance throughout, so our rolling sequence never had to change.”
★★★★★
“The ultrasonic records arrived with the plate, so incoming inspection became a document check.”
CERTIFICATIONS & QUALITY DOCUMENTATION
Certifications & Quality Documentation
Our production and inspection processes are certified to international standards, and every delivery ships with EN 10204 3.1 mill test certificates.
ISO 9001:2015
Quality Management System
PED 2014/68/EU
Pressure Equipment Directive
ASTM / ASME
Material Standards Compliance
EN 10204 3.1
Mill Test Certificates
FAQ
Frequently Asked Questions
Which ASTM standard covers Hastelloy C-22 plate and sheet?
Flat-rolled C-22 product is ordered to ASTM B575, which sits alongside B906 general requirements. ASME SB575 applies under code jurisdiction.
What thickness range is available?
Gauges run from 0.5 mm coil through 100 mm hot-rolled plate, cut to your length and width. Thicker sections still depend on slab supply.
Can the plate be welded without post-weld heat treatment?
Yes. Carbon at 0.015% max keeps grain-boundary carbides out of the weld zone, so post-weld heat treatment usually stays unnecessary.
Does hot forming change the delivered properties?
Hot work above roughly 650 °C can precipitate intermetallic phases, so a follow-up solution anneal restores corrosion resistance. Tell us the forming route and we quote the re-anneal with the order.
Can you supply cut blanks, rings, and circles?
Yes. Plasma, waterjet, and shear cutting produce blanks, rings, and circles from any stocked gauge.
What is your MOQ for Hastelloy C-22 plate?
Stocked gauges ship from one plate up, and trial lots carry no premium.
What are your trade terms for Hastelloy C-22 plate?
FOB serves as our standard term, and we price EXW, CIF, or DAP against a named destination.
How is Hastelloy C-22 plate priced?
The ordered gauge, width, and condition set the price, which we calculate by weight.
What is the lead time for Hastelloy C-22 plate?
Expect 7-15 days on standard gauges, and we schedule cut-to-size or heavy plate against production.
Do you provide EN 10204 3.1 or 3.2 certificates?
Yes. An EN 10204 3.1 certificate travels with each delivery, and third-party 3.2 endorsement is available.
REQUEST FOR QUOTATION
Need A Custom Alloy Solution?
Give us thickness, width, length, standard, and quantity, and the reply carries price and Incoterm. Add cutting or condition questions to the same message.
