01
Cold-Drawn Square Bar
Cold-drawn Inconel 600 square bar with tighter across-flats tolerances.
Request Availability →Inconel 600 Square Bar
Solid-solution nickel-chromium-iron square bar to ASTM B166 for supports, fixtures and equipment built for hot corrosive service.
Mill-Certified Material
Inconel 600 square bar carries full heat-number traceability on every order.
Specification Supply
Specifically, we match Inconel 600 square bar to your ASTM B166 condition, size and finish.
Fast Global Delivery
Therefore, our team ships Inconel 600 square bar worldwide with complete export papers.
PRODUCT OVERVIEW

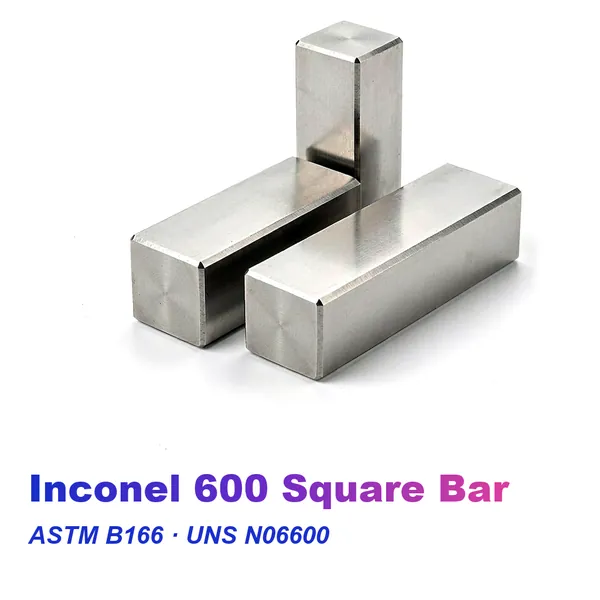

About Inconel 600 Square Bar
Inconel 600 square bar is a solid-solution nickel-chromium-iron alloy with 72% nickel minimum. Inconel 600 square bar keeps useful strength from cryogenic temperature up to about 1093 °C in oxidizing service.
We supply Inconel 600 square bar as hot-worked, cold-drawn, annealed, peeled or centerless-ground stock to ASTM B166. Every Inconel 600 square bar order carries heat-number traceability and EN 10204 3.1 documents for incoming inspection.
In addition, Inconel 600 square bar shares the UNS N06600 chemistry detailed on our Inconel 600 material page for alloy data.
PRODUCT FEATURES
Key Features of Inconel 600 Square Bar
Inconel 600 square bar is a solid-solution nickel-chromium-iron alloy supplied to ASTM B166 and ASME SB166. We provide UNS N06600 square bar in annealed, hot-worked and cold-worked conditions for chemical processing, heat treatment and high-temperature service. Every Inconel 600 square bar order carries heat-number traceability and EN 10204 3.1 mill test reports.
Inconel 600
High-Temperature Strength
For example, annealed Square Bar keeps dependable load capacity near 1000 °C.
01
Oxidation Resistance
In addition, Inconel 600 square bar resists oxidation in hot air up to about 1093 °C.
02
Chloride Stress-Corrosion Resistance
Moreover, Inconel 600 square bar resists chloride cracking that troubles stainless steels.
03
Caustic Service
Specifically, Square Bar handles hot caustic liquors where many alloys fail.
04
Cryogenic Capability
Square Bar retains useful toughness down to cryogenic temperatures.
05
Good Workability
We form and weld Inconel 600 square bar readily in the annealed condition.
06
Full Traceability
Specifically, every Inconel 600 square bar order carries heat numbers and EN 10204 3.1 documents.
07
Custom Supply
We cut Inconel 600 square bar to your size, length, condition and packing.
08
WHY CHOOSE US
Why Choose Inconel 600
Inconel 600 square bar needs a supply partner who controls specification, quality and delivery. Southerly Alloy manages your Inconel 600 square bar order from review to shipment with traceable material.
01
Specification Compliance
We match Inconel 600 square bar to your ASTM B166 or AMS requirement and finish.
02
Quality and Traceability
Specifically, every Inconel 600 square bar batch ships with EN 10204 3.1 certificates and heat numbers.
03
Flexible Supply
In addition, we cut or wind Inconel 600 square bar to custom sizes, lengths and packing.
04
Responsive Service
As a result, our team confirms Inconel 600 square bar specifications quickly and ships with full export papers.
MANUFACTURING PROCESS
Reliable Production For Critical Applications
From melting to final check, we process Inconel 600 square bar to your ordered ASTM B166 condition. We control and document each Inconel 600 square bar stage with full heat-number traceability.
01
Raw Material Selection
We weigh nickel, chromium and iron so Inconel 600 square bar meets UNS N06600 chemistry.
02
Vacuum Induction Melting
First, we melt the Inconel 600 square bar charge under vacuum to limit gas pickup.
03
ESR Remelting
Next, electroslag remelting refines the Inconel 600 square bar electrode to cut inclusions where specified.
04
Hot Forging and Rolling
Then, we forge and hot roll the ingot into Inconel 600 square bar with controlled working.
05
Cold Drawing or Peeling
After that, we cold draw or peel the Inconel 600 square bar to the ordered size and finish.
06
Annealing
Subsequently, we anneal the Inconel 600 square bar near 900–1050 °C and cool it rapidly.
07
Dimensional and Surface Checks
We verify Inconel 600 square bar size, straightness and surface before release.
08
Final Inspection and MTR
Finally, we confirm Inconel 600 square bar chemistry and properties, then issue the MTR.
Manufacturing Facility
MANUFACTURING CAPABILITY
Advanced Production For Nickel Alloy Products
Specifically, Southerly Alloy supplies Inconel 600 square bar across the common ASTM B166 forms and conditions. We confirm Inconel 600 square bar size, length, straightness and finish against your order. Moreover, square bar is one section in our Inconel 600 bar and rod program.
20,000+ m²
Factory Area
Specifically, modern production facilities for Inconel 600 square bar and dedicated workshops.
50+
Production Machines
Advanced equipment for Inconel 600 square bar manufacturing.
600 Tons
Monthly Capacity
Inconel 600 square bar output across standard and custom sizes.
30+
Technical Engineers
Experienced engineers for Inconel 600 square bar specification support.
30+ Countries
Export Reach
In addition, reliable logistics for Inconel 600 square bar with full documentation.
QUALITY ASSURANCE
Strict Quality Control From Production To Delivery
Every Inconel 600 square bar batch passes inspection before release. In addition, we check Inconel 600 square bar chemistry, mechanical properties, dimensions and surface under our ISO 9001 system.
01
Material Verification
We confirm Inconel 600 square bar grade and heat against your purchase order.
02
Dimensional Inspection
Specifically, we measure Inconel 600 square bar size, length and straightness to standard and drawing.
03
Testing and Inspection
In addition, we arrange tensile, hardness and NDT tests where your Inconel 600 square bar specification requires.
04
Certification and Traceability
Every Inconel 600 square bar delivery includes EN 10204 3.1 certificates with heat numbers.
PRODUCT FORMS
Available Product Forms
Inconel 600 square bar comes in several conditions and variants for different machining and service needs. Specifically, the list below shows the common Inconel 600 Square Bar forms we supply.
02
Bright Square Bar
Bright-finished Inconel 600 square bar with clean faces and edges.
Request Availability →
03
Peeled Square Bar
Peeled Inconel 600 square bar with controlled faces ready for machining.
Request Availability →
04
Precision Square Bar
Tight-tolerance Inconel 600 square bar for turned and machined components.
Request Availability →
05
Ground Square Bar
Ground Inconel 600 square bar with close dimensional control.
Request Availability →
06
Forged Square Bar
Forged Inconel 600 square bar with a refined grain for heavy service.
Request Availability →
07
Custom Square Bar
Custom Inconel 600 square bar cut to your drawing and order quantity.
Request Availability →
APPLICATIONS
Engineered For Demanding Industries
Buyers specify Inconel 600 square bar wherever parts need strength under heat, caustic or corrosive load. Specifically, the applications below show typical Inconel 600 Square Bar uses.
Discuss Your Application →
01
Heat-Treatment Fixtures
Inconel 600 square bar builds jigs and baskets for furnace cycling.
02
Furnace Supports
Square bar frames equipment carrying heavy load near 1000 °C.
03
Caustic Evaporators
Inconel 600 square bar forms structural members in caustic concentrators.
04
Chemical Equipment
Square bar builds supports and frames inside corrosive process units.
05
Fastener Blanks
We machine Inconel 600 square bar into square nuts and special blanks.
06
Nuclear Components
Square bar supplies reactor-adjacent hardware needing Nickel 72 minimum.
07
Machining Blanks
Inconel 600 square bar gives CNC parts a stable annealed start.
08
Custom Fabrications
Square bar machines into bespoke Inconel 600 furnace hardware.
TECHNICAL INFORMATION
Technical Specifications
Detailed technical information including chemical composition, mechanical properties, standards and available dimensions.
Chemical Composition
Nickel sits at 72.0% minimum inside the UNS N06600 window that ASTM B166 sets for this square bar, with chromium held between 14.0% and 17.0%. Consequently, the iron-bearing balance of this square bar keeps its matrix austenitic through repeated heating and cooling.
Importantly, the full composition table on the Inconel 600 material page lists every element against its ASTM B166 limit for this square bar.
Mechanical Properties
The minimum room-temperature values below apply to UNS N06600 bar in the annealed and as-worked conditions per ASTM B166. The applicable condition and dimension govern final acceptance.
| Condition | Tensile Strength | Yield Strength, 0.2% Offset | Elongation |
|---|---|---|---|
| Cold-worked / hot-worked, annealed | ≥80 ksi (550 MPa) | ≥35 ksi (240 MPa) | ≥30% |
| Hot-worked, as worked | ≥85–95 ksi (585–655 MPa) | ≥35–45 ksi (240–310 MPa) | ≥20–30% |
| Cold-worked, as worked | ≥105–120 ksi (725–825 MPa) | ≥80–90 ksi (550–620 MPa) | ≥7–12% |
Physical Properties
Published references put the density of this square bar near 8.47 g/cm³ and its melting range at 1370–1413 °C. Moreover, the solid-solution matrix keeps this square bar non-magnetic right up to ambient temperature.
In addition, the physical properties table on the Inconel 600 material page carries the modulus, the thermal conductivity and the remaining design values behind this square bar.
Heat Treatment
Inconel 600 square bar is a solid-solution alloy, so annealing — not aging — sets its final softness. We supply the square bar in the condition below that your application needs.
| Condition | Typical Treatment |
|---|---|
| Annealed | Held near 900–1050 °C (1650–1920 °F) per section size, then rapidly cooled |
| Stress Relieved | Available when specified for the application |
| Custom Condition | Heat treatment according to the agreed specification |
Standards
ASTM B166 is the principal UNS N06600 bar and rod document for this square bar, issued by ASTM International. Moreover, ASME SB166 covers pressure equipment built from this square bar while SAE AMS 5665 covers aerospace procurement.
| Standard | Product or Application |
|---|---|
| ASTM B166 | Nickel-chromium-iron alloy rod, bar and wire |
| ASME SB166 | ASME counterpart for pressure equipment |
| SAE AMS 5665 | Nickel alloy 600 bars, forgings and rings |
Above all, the full standards list on the Inconel 600 material page adds the European designations and the remaining product documents for this square bar.
Dimensions
Therefore, Inconel 600 square bar dimensions depend on the manufacturing route, standard and order quantity. The table below lists typical supply ranges; please confirm your size in the inquiry.
| Product Form | Typical Supply | Length |
|---|---|---|
| Square Bar | 10–150 mm | Single Random, Double Random or Custom |
| Cold-Drawn Square Bar | 10–80 mm | Custom |
| Bright Square Bar | 10–100 mm | Single Random, Double Random or Custom |
| Peeled Square Bar | 20–100 mm | Custom |
| Precision Square Bar | 10–60 mm | Custom |
| Ground Square Bar | 10–80 mm | Custom |
| Forged Square Bar | 100–300 mm | Custom |
| Custom Square Bar | To drawing | Custom |
Available square bar dimensions depend on the manufacturing route, standard, material condition and order quantity. Please confirm your required square bar size, section and length in the inquiry.
Surface Finishes
Therefore, the surface condition decides how this square bar machines, feeds and resists scaling in service. Specifically, we agree the finish on this Inconel 600 square bar with your order.
| Surface Condition | Typical Use |
|---|---|
| Hot Finished | As-hot-worked stock for square bar, ordered where every face will be machined. |
| Cold Drawn | Close diameter control on this square bar, with the drawing pass lifting strength. |
| Centerless Ground | Tight diameter and straightness on this square bar for shafting and pins. |
Meanwhile, the surface finishes table on the Inconel 600 material page lists the remaining conditions we quote for this square bar.
Related forms from the same heat cover Inconel 600 Threaded Rod, Inconel 600 Welding Wire and Inconel 600 Wire when your square bar order needs them.
TECHNICAL DOCUMENTATION
Download Technical Datasheet
Get detailed information including specifications, standards, dimensions and material properties.
HOW TO START
Start Your Order in 6 Simple Steps
From first inquiry to delivered Inconel 600 square bar, our process keeps you informed at every stage. Therefore, most Inconel 600 square bar orders move from inquiry to shipment in under three weeks.
1
Send Your Inquiry
Send your Inconel 600 square bar grade, size, quantity and standard.
2
Confirm the Specification
State ASTM B166 or AMS with the Inconel 600 square bar condition and finish you need.
3
Review the Quotation
Receive pricing for Inconel 600 square bar by dimension, quantity and destination.
4
Confirm the Order
Approve the Inconel 600 square bar technical spec, terms and schedule.
5
Production and Inspection
We make and inspect your Inconel 600 square bar to the agreed specification.
6
Shipment and Documentation
Receive Inconel 600 square bar with EN 10204 3.1 MTC and export papers.
CERTIFICATIONS & QUALITY DOCUMENTATION
Certifications & Quality Documentation
Our production and inspection processes are certified to international standards, and every delivery ships with EN 10204 3.1 mill test certificates.
ISO 9001:2015
Quality Management System
PED 2014/68/EU
Pressure Equipment Directive
ASTM / ASME
Material Standards Compliance
EN 10204 3.1
Mill Test Certificates
FAQ
Frequently Asked Questions
Which ASTM specification applies to Inconel 600 Square Bar?
ASTM B166 and ASME SB166 cover Inconel 600 square bar; SAE AMS 5665 serves aerospace procurement.
How is the price of Inconel 600 square bar calculated?
Mainly by weight for Inconel 600 square bar with the prevailing nickel surcharge.
Can Inconel 600 square bar be welded?
Yes. We weld Inconel 600 square bar readily in the annealed condition, matching filler to the joint.
Is Inconel 600 square bar easy to machine?
We machine Inconel 600 square bar in the annealed state with rigid setups and positive cuts.
What heat treatment does Inconel 600 square bar need?
Annealing near 900–1050 °C sets the softness of Inconel 600 square bar; no aging step is required.
What applications use Inconel 600 square bar?
Inconel 600 square bar serves chemical heaters, furnace fixtures, caustic equipment and nuclear ancillary parts.
What is your MOQ for Inconel 600 square bar?
One piece for many common Inconel 600 square bar sizes.
What are your trade terms for Inconel 600 square bar?
Mainly FOB for Inconel 600 square bar; EXW and CIF also available.
What is the lead time for Inconel 600 square bar?
Stock Inconel 600 square bar sizes ship in 7-15 days. Custom sizes take a little longer.
Do you provide EN 10204 3.1 or 3.2 certificates for Inconel 600 square bar?
Yes. Every Inconel 600 square bar delivery includes 3.1; 3.2 with third-party endorsement on request.
REQUEST FOR QUOTATION
Need A Custom Alloy Solution?
Inconel 600 square bar from Southerly Alloy covers standard and custom supply to ASTM B166. Send your Inconel 600 square bar grade, dimensions, quantity and delivery needs to receive a quotation.
Specifically, our team reviews your Inconel 600 square bar specification, confirms the condition and finish, and returns pricing with clear Incoterms. We then produce and inspect your Inconel 600 square bar before shipping it with full export documentation.
