ERNiCr-3 Bare Wire
AWS A5.14 solid Inconel 600 welding wire for GTAW, GMAW, SAW and PAW.
Request Availability →Inconel 600 Welding Wire
ERNiCr-3 and ENiCrFe-2/3 filler metals in bare wire, spools and covered electrodes for welding Inconel 600 and dissimilar metals.
Mill-Certified Material
Inconel 600 welding wire carries full heat-number traceability on every order.
Specification Supply
Specifically, we match Inconel 600 welding wire to your ASTM B166 condition, size and finish.
Fast Global Delivery
Therefore, our team ships Inconel 600 welding wire worldwide with complete export papers.
PRODUCT OVERVIEW
About Inconel 600 Welding Wire
Inconel 600 welding wire covers the filler metals specified for joining UNS N06600 and related nickel-chromium-iron alloys. Inconel 600 welding wire is supplied as ERNiCr-3 bare wire and as ENiCrFe-2 and ENiCrFe-3 covered electrodes.

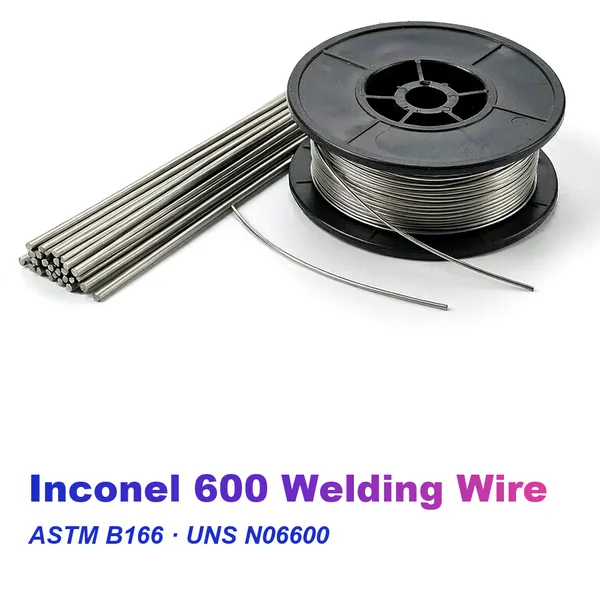

We stock Inconel 600 welding wire as straight TIG rods, wound MIG spools, submerged-arc coils and covered electrodes. Every Inconel 600 welding wire batch arrives with heat-number traceability and EN 10204 3.1 documents for weld procedure records.
In addition, Inconel 600 welding wire pairs with the base-metal data on our Inconel 600 material page for chemistry reference.
PRODUCT FEATURES
Key Features of Inconel 600 Welding Wire
Inconel 600 welding wire is a solid-solution nickel-chromium-iron alloy supplied to ASTM B166 and ASME SB166. We provide UNS N06600 welding wire as ERNiCr-3 bare wire, spools and covered electrodes for chemical processing, heat treatment and high-temperature service. Every Inconel 600 welding wire order carries heat-number traceability and EN 10204 3.1 mill test reports.
Inconel 600
One Wire, Four Processes
For example, ERNiCr-3 Inconel 600 welding wire runs in GTAW, GMAW, SAW and PAW.
01
Dissimilar Joint Specialist
Moreover, Inconel 600 welding wire joins nickel alloys to carbon and stainless steels.
02
Thermal Expansion Match
Specifically, the filler expands at about 13 µm/m·°C, close to carbon steel.
03
Crack-Resistant Welds
In addition, niobium ties up sulfur and phosphorus to limit solidification cracking.
04
Low-Temperature Toughness
ENiCrFe-2 Inconel 600 welding wire holds impact toughness in 9% Ni LNG tank welds.
05
Clean Starts
We pack Inconel 600 welding wire electrodes in vacuum packs that keep the basic coating dry.
06
WHY CHOOSE US
Why Choose Inconel 600
Inconel 600 welding wire needs a supply partner who controls specification, quality and delivery. Southerly Alloy manages your Inconel 600 welding wire order from review to shipment with traceable material.
01
Specification Compliance
We match Inconel 600 welding wire to your ASTM B166 or AMS requirement and finish.
02
Quality and Traceability
Specifically, every Inconel 600 welding wire batch ships with EN 10204 3.1 certificates and heat numbers.
03
Flexible Supply
In addition, we cut or wind Inconel 600 welding wire to custom sizes, lengths and packing.
04
Responsive Service
As a result, our team confirms Inconel 600 welding wire specifications quickly and ships with full export papers.
MANUFACTURING PROCESS
Reliable Production For Critical Applications
From melting to spooling, we process Inconel 600 welding wire to your ordered AWS class. We control and document each Inconel 600 welding wire stage with full heat-number traceability.
01
Raw Material Selection
We weigh electrolytic nickel, chromium and niobium so Inconel 600 welding wire meets the ERNiCr-3 limits.
02
Vacuum Induction Melting
First, we melt the Inconel 600 welding wire charge under vacuum to limit gas pickup.
03
Hot Rolling and Wire Rod
Next, we roll the Inconel 600 welding wire electrode into drawing rod.
04
Drawing to Size
Then, we draw the Inconel 600 welding wire to TIG, MIG and SAW diameters.
05
Coating Line
For ENiCrFe-2 and ENiCrFe-3, we extrude the basic coating onto the Inconel 600 welding wire core wire.
06
Baking and Packing
Subsequently, we bake electrodes and vacuum pack them to protect the coating.
07
Weld-Test Verification
We run all-weld-metal checks on Inconel 600 welding wire against the AWS minimums.
08
Final Inspection and MTR
Finally, we confirm Inconel 600 welding wire chemistry and properties, then issue the MTR.
Manufacturing Facility
MANUFACTURING CAPABILITY
Advanced Production For Nickel Alloy Products
Specifically, Southerly Alloy supplies Inconel 600 welding wire across the common ASTM B166 forms and conditions. We confirm Inconel 600 welding wire size, length, straightness and finish against your order. Moreover, welding wire is one section in our Inconel 600 bar and rod program.
20,000+ m²
Factory Area
Specifically, modern production facilities for Inconel 600 welding wire and dedicated workshops.
50+
Production Machines
Advanced equipment for Inconel 600 welding wire manufacturing.
600 Tons
Monthly Capacity
Inconel 600 welding wire output across standard and custom sizes.
30+
Technical Engineers
Experienced engineers for Inconel 600 welding wire specification support.
30+ Countries
Export Reach
In addition, reliable logistics for Inconel 600 welding wire with full documentation.
QUALITY ASSURANCE
Strict Quality Control From Production To Delivery
Every Inconel 600 welding wire batch passes inspection before release. In addition, we check Inconel 600 welding wire chemistry, mechanical properties, dimensions and surface under our ISO 9001 system.
01
Material Verification
We confirm Inconel 600 welding wire grade and heat against your purchase order.
02
Dimensional Inspection
Specifically, we measure Inconel 600 welding wire size, length and straightness to standard and drawing.
03
Testing and Inspection
In addition, we arrange tensile, hardness and NDT tests where your Inconel 600 welding wire specification requires.
04
Certification and Traceability
Every Inconel 600 welding wire delivery includes EN 10204 3.1 certificates with heat numbers.
PRODUCT FORMS
Available Product Forms
Inconel 600 welding wire comes in several conditions and variants for different machining and service needs. Specifically, the list below shows the common Inconel 600 Welding Wire forms we supply.
02
TIG Filler Rods
Straight ERNiCr-3 Inconel 600 welding wire in 1000 mm lengths.
Request Availability →
03
MIG Spools
ERNiCr-3 wire wound on 5 kg and 15 kg spools for GMAW.
Request Availability →
04
ENiCrFe-2 Electrodes
AWS A5.11 covered electrodes with molybdenum for LNG and low-temperature joints.
Request Availability →
05
ENiCrFe-3 Electrodes
AWS A5.11 high-manganese Inconel 600 welding electrodes with strong crack resistance.
Request Availability →
06
SAW Coils
ERNiCr-3 wire in 25 kg coils for submerged-arc welding with nickel flux.
Request Availability →
07
Custom Winding
Inconel 600 welding wire wound to your spool, weight and length.
Request Availability →
08
Custom Electrodes
Covered electrodes produced to your diameter and length.
Request Availability →
APPLICATIONS
Engineered For Demanding Industries
Buyers specify Inconel 600 welding wire wherever joints must hold strength and corrosion resistance near heat. Specifically, the applications below show typical Inconel 600 Welding Wire uses.
Discuss Your Application →
01
Welding Inconel 600 Itself
ERNiCr-3 Inconel 600 welding wire joins base metal of the same grade.
02
Dissimilar Metal Joints
Welding wire for Inconel 600 to carbon and stainless steels, its largest single use.
03
Incoloy 800 Series
ERNiCr-3 filler joins Incoloy 800, 800H and 800HT equipment.
04
Nickel Alloy Fabrications
Inconel 600 welding wire builds 601 and 690 equipment assemblies.
05
Cladding and Overlay
Welding wire applies Inconel 600-type corrosion-resistant overlay layers.
06
Petrochemical Heaters
ERNiCr-3 joins reformer and furnace components running at temperature.
07
Power Plant Maintenance
Inconel 600 welding wire repairs boiler and heat-exchanger hardware.
08
Custom Weldments
Filler metal supports bespoke Inconel 600 fabrication projects.
TECHNICAL INFORMATION
Technical Specifications
Detailed technical information including chemical composition, mechanical properties, standards and available dimensions.
Chemical Composition
Nickel sits at 72.0% minimum inside the UNS N06600 window that ASTM B166 sets for this welding wire, with chromium held between 14.0% and 17.0%. Consequently, the iron-bearing balance of this welding wire keeps its matrix austenitic through repeated heating and cooling.
Importantly, the full composition table on the Inconel 600 material page lists every element against its ASTM B166 limit for this welding wire.
Mechanical Properties
The minimum all-weld-metal values below follow the AWS classification for Inconel 600 welding wire. Note that AWS does not specify yield strength for these filler metals.
| Product (all-weld metal) | Tensile Strength | Yield Strength | Elongation |
|---|---|---|---|
| ERNiCr-3 bare wire (AWS A5.14) | ≥80 ksi (550 MPa) | Not specified by AWS | ≥30% |
| ENiCrFe-2 electrode (AWS A5.11) | ≥80 ksi (550 MPa) | Not specified by AWS | ≥30% |
| ENiCrFe-3 electrode (AWS A5.11) | ≥80 ksi (550 MPa) | Not specified by AWS | ≥30% |
- As-welded ERNiCr-3 typically measures near 720 MPa strength with 480 MPa yield and 40% elongation; treat these as typical values, not standard minimums.
Physical Properties
Published references put the density of this welding wire near 8.47 g/cm³ and its melting range at 1370–1413 °C. Moreover, the solid-solution matrix keeps this welding wire non-magnetic right up to ambient temperature.
In addition, the physical properties table on the Inconel 600 material page carries the modulus, the thermal conductivity and the remaining design values behind this welding wire.
Filler Metal Classifications
Specifically, the three Inconel 600 welding products below are different compositions, not the same chemistry in two forms.
| Product | AWS Class | Key Composition | Typical Strength | Best Suited For |
|---|---|---|---|---|
| Bare wire | ERNiCr-3 (A5.14) / S Ni 6082 | Ni ≥67%, Cr 18–22%, Nb+Ta 2.0–3.0% | ≥80 ksi (550 MPa) | GTAW / GMAW / SAW, one wire across four processes |
| Covered electrode | ENiCrFe-2 (A5.11) | Adds molybdenum 0.5–2.5% | ≥80 ksi (550 MPa) | 9% Ni steel LNG tanks, low-temperature cryogenic joints |
| Covered electrode | ENiCrFe-3 (A5.11) / Alloy 182 | High manganese 5.0–9.5% | ≥80 ksi (550 MPa) | Dissimilar joints with maximum crack resistance |
Standards
AWS A5.14 is the principal ERNiCr-3 classification for this welding wire, issued by the American Welding Society. Moreover, AWS A5.11 covers the ENiCrFe-2 and ENiCrFe-3 electrodes that pair with this welding wire.
| Standard | Product or Application |
|---|---|
| AWS A5.14 | ERNiCr-3 bare nickel-chromium-iron welding wire |
| AWS A5.11 | ENiCrFe-2 and ENiCrFe-3 covered welding electrodes |
| ASME SFA-5.14 | ASME version of the bare filler specification |
Above all, the full standards list on the Inconel 600 material page adds the European designations and the remaining product documents for this welding wire.
Dimensions
Therefore, Inconel 600 welding wire dimensions depend on the manufacturing route, standard and order quantity. The table below lists typical supply ranges; please confirm your size in the inquiry.
| Product Form | Typical Supply | Length |
|---|---|---|
| TIG Filler Rod (GTAW) | 1.6 / 2.0 / 2.4 / 3.2 / 4.0 mm × 1000 mm | 5 kg tube |
| MIG Wire (GMAW) | 0.8 / 0.9 / 1.0 / 1.2 / 1.6 mm | 5 kg or 15 kg spool |
| SAW Wire | 1.6–4.0 mm | 25 kg coil |
| Covered Electrode (SMAW) | 2.5 / 3.2 / 4.0 / 5.0 mm × 300 / 350 / 450 mm | 5 kg vacuum pack |
| Custom Length | To drawing | Custom |
Available welding wire dimensions depend on the manufacturing route, standard, material condition and order quantity. Please confirm your required welding wire size, section and length in the inquiry.
Surface Finishes
Therefore, the surface condition decides how this welding wire machines, feeds and resists scaling in service. Specifically, we agree the finish on this Inconel 600 welding wire with your order.
| Surface Condition | Typical Use |
|---|---|
| Clean Bright | The standard finish for bare ERNiCr-3 welding wire; we do not copper-coat it. |
| Spool Wound | Layer-wound welding wire for smooth GMAW feeding. |
| Straight Rods | Cut TIG rods of this welding wire with clean, deburred ends. |
Meanwhile, the surface finishes table on the Inconel 600 material page lists the remaining conditions we quote for this welding wire.
Related forms from the same heat cover Inconel 600 Wire, Inconel 600 Billet and Inconel 600 Bright Bar when your welding wire order needs them.
TECHNICAL DOCUMENTATION
Download Technical Datasheet
Get detailed information including specifications, standards, dimensions and material properties.
HOW TO START
Start Your Order in 6 Simple Steps
From first inquiry to delivered Inconel 600 welding wire, our process keeps you informed at every stage. Therefore, most Inconel 600 welding wire orders move from inquiry to shipment in under three weeks.
1
Send Your Inquiry
Send your Inconel 600 welding wire grade, size, quantity and standard.
2
Confirm the Specification
State ASTM B166 or AMS with the Inconel 600 welding wire condition and finish you need.
3
Review the Quotation
Receive pricing for Inconel 600 welding wire by dimension, quantity and destination.
4
Confirm the Order
Approve the Inconel 600 welding wire technical spec, terms and schedule.
5
Production and Inspection
We make and inspect your Inconel 600 welding wire to the agreed specification.
6
Shipment and Documentation
Receive Inconel 600 welding wire with EN 10204 3.1 MTC and export papers.
CERTIFICATIONS & QUALITY DOCUMENTATION
Certifications & Quality Documentation
Our production and inspection processes are certified to international standards, and every delivery ships with EN 10204 3.1 mill test certificates.
ISO 9001:2015
Quality Management System
PED 2014/68/EU
Pressure Equipment Directive
ASTM / ASME
Material Standards Compliance
EN 10204 3.1
Mill Test Certificates
FAQ
Frequently Asked Questions
Which AWS classification applies to Inconel 600 Welding Wire?
ERNiCr-3 per AWS A5.14 covers the bare wire; ENiCrFe-2 and ENiCrFe-3 per AWS A5.11 cover the electrodes.
Is ERNiCr-3 the same composition as the electrodes?
No. ERNiCr-3, ENiCrFe-2 and ENiCrFe-3 are different compositions, each matched to different joint duties.
Can Inconel 600 welding wire weld dissimilar metals?
Yes. Dissimilar joints between nickel alloys and carbon or stainless steels are the largest use for Inconel 600 welding wire.
How is the price of Inconel 600 welding wire calculated?
Mainly by weight for Inconel 600 welding wire with the prevailing nickel surcharge.
What is your MOQ for Inconel 600 welding wire?
One carton or spool for many common Inconel 600 welding wire sizes.
What are your trade terms for Inconel 600 welding wire?
Mainly FOB for Inconel 600 welding wire; EXW and CIF also available.
What is the lead time for Inconel 600 welding wire?
Stock Inconel 600 welding wire sizes ship in 7-15 days. Custom sizes take a little longer.
Do you provide EN 10204 3.1 or 3.2 certificates for Inconel 600 welding wire?
Yes. Every Inconel 600 welding wire delivery includes 3.1; 3.2 with third-party endorsement on request.
Which current type suits the covered electrodes?
ENiCrFe-2 and ENiCrFe-3 electrodes run best on DC positive with their basic coating.
What information should I include in an Inconel 600 welding wire inquiry?
Please send diameter, spool weight, AWS class, quantity and destination so we can quote Inconel 600 welding wire accurately.
