Annealed Inconel 600 Wire
Soft annealed Inconel 600 wire for weaving, forming and redrawing.
Request Availability →Inconel 600 Wire
Solid-solution nickel-chromium-iron wire from 0.2 to 12 mm in annealed, regular and spring temper for mesh, springs and cold-formed parts.
Mill-Certified Material
Inconel 600 wire carries full heat-number traceability on every order.
Specification Supply
Specifically, we match Inconel 600 wire to your ASTM B166 condition, size and finish.
Fast Global Delivery
Therefore, our team ships Inconel 600 wire worldwide with complete export papers.
PRODUCT OVERVIEW

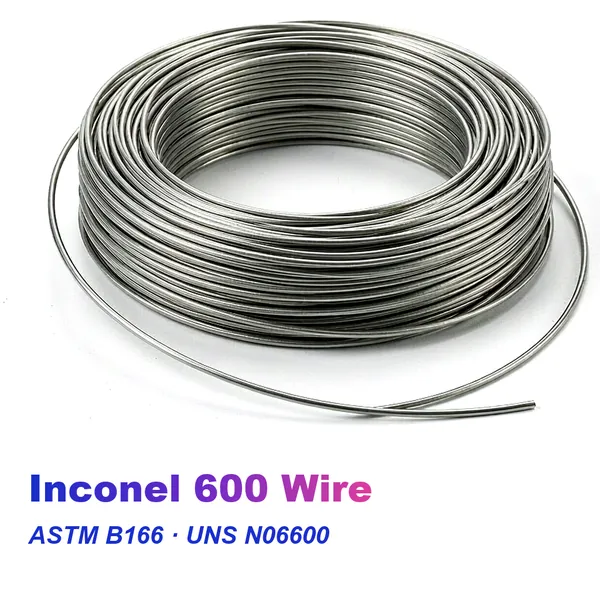

About Inconel 600 Wire
Inconel 600 wire is a solid-solution nickel-chromium-iron alloy with 72% nickel minimum. Inconel 600 wire keeps useful strength from cryogenic temperature up to about 1093 °C in oxidizing service.
We supply Inconel 600 wire as hot-worked, cold-drawn, annealed, peeled or centerless-ground stock to ASTM B166. Every Inconel 600 wire order carries heat-number traceability and EN 10204 3.1 documents for incoming inspection.
In addition, Inconel 600 wire shares the UNS N06600 chemistry detailed on our Inconel 600 material page for alloy data.
PRODUCT FEATURES
Key Features of Inconel 600 Wire
Inconel 600 wire is a solid-solution nickel-chromium-iron alloy supplied to ASTM B166 and ASME SB166. We provide UNS N06600 wire from 0.2 to 12 mm in annealed, regular and spring temper for chemical processing, heat treatment and high-temperature service. Every Inconel 600 wire order carries heat-number traceability and EN 10204 3.1 mill test reports.
Inconel 600
Wide Temper Range
For example, Inconel 600 wire ships annealed, regular temper or spring temper.
01
Fine Sizes
Specifically, Inconel 600 wire draws down to 0.10 mm for weaving and filtration.
02
Oxidation Resistance
In addition, Wire keeps a stable surface near 1000 °C service.
03
Chloride Resistance
Moreover, Wire resists chloride stress-corrosion cracking in hot brines.
04
Consistent Coiling
We layer-wound Wire spools for smooth downstream feeding.
05
Full Traceability
Specifically, every Inconel 600 wire coil carries heat numbers and EN 10204 3.1 documents.
06
Custom Supply
We cut Inconel 600 wire to your diameter, temper, pack and length.
07
WHY CHOOSE US
Why Choose Inconel 600
Inconel 600 wire needs a supply partner who controls specification, quality and delivery. Southerly Alloy manages your Inconel 600 wire order from review to shipment with traceable material.
01
Specification Compliance
We match Inconel 600 wire to your ASTM B166 or AMS requirement and finish.
02
Quality and Traceability
Specifically, every Inconel 600 wire batch ships with EN 10204 3.1 certificates and heat numbers.
03
Flexible Supply
In addition, we cut or wind Inconel 600 wire to custom sizes, lengths and packing.
04
Responsive Service
As a result, our team confirms Inconel 600 wire specifications quickly and ships with full export papers.
MANUFACTURING PROCESS
Reliable Production For Critical Applications
From melting to spooling, we process Inconel 600 wire to your ordered temper. We control and document each Inconel 600 wire stage with full heat-number traceability.
01
Raw Material Selection
We weigh nickel, chromium and iron so Inconel 600 wire meets UNS N06600 chemistry.
02
Vacuum Induction Melting
First, we melt the Inconel 600 wire charge under vacuum to limit gas pickup.
03
Hot Rolling to Rod
Next, we hot roll the ingot into Inconel 600 wire drawing rod.
04
Annealing and Descaling
Then, we anneal the rod and descale it before drawing.
05
Cold Drawing
After that, we draw the Inconel 600 wire through successive dies to the ordered diameter.
06
Final Anneal or Temper
Subsequently, we anneal for soft wire or hold cold work for regular and spring temper.
07
Spooling and Winding
We wind Inconel 600 wire onto coils and spools with controlled layering.
08
Final Inspection and MTR
Finally, we confirm Inconel 600 wire chemistry and properties, then issue the MTR.
Manufacturing Facility
MANUFACTURING CAPABILITY
Advanced Production For Nickel Alloy Products
Specifically, Southerly Alloy supplies Inconel 600 wire across the common ASTM B166 forms and conditions. We confirm Inconel 600 wire size, length, straightness and finish against your order. Moreover, wire is one section in our Inconel 600 bar and rod program.
20,000+ m²
Factory Area
Specifically, modern production facilities for Inconel 600 wire and dedicated workshops.
50+
Production Machines
Advanced equipment for Inconel 600 wire manufacturing.
600 Tons
Monthly Capacity
Inconel 600 wire output across standard and custom sizes.
30+
Technical Engineers
Experienced engineers for Inconel 600 wire specification support.
30+ Countries
Export Reach
In addition, reliable logistics for Inconel 600 wire with full documentation.
QUALITY ASSURANCE
Strict Quality Control From Production To Delivery
Every Inconel 600 wire batch passes inspection before release. In addition, we check Inconel 600 wire chemistry, mechanical properties, dimensions and surface under our ISO 9001 system.
01
Material Verification
We confirm Inconel 600 wire grade and heat against your purchase order.
02
Dimensional Inspection
Specifically, we measure Inconel 600 wire size, length and straightness to standard and drawing.
03
Testing and Inspection
In addition, we arrange tensile, hardness and NDT tests where your Inconel 600 wire specification requires.
04
Certification and Traceability
Every Inconel 600 wire delivery includes EN 10204 3.1 certificates with heat numbers.
PRODUCT FORMS
Available Product Forms
Inconel 600 wire comes in several conditions and variants for different machining and service needs. Specifically, the list below shows the common Inconel 600 Wire forms we supply.
02
Regular Temper Wire
Cold-worked Inconel 600 wire with 120 ksi minimum strength for screens and parts.
Request Availability →
03
Spring Temper Wire
Spring-temper Inconel 600 wire reaching 185 ksi in fine diameters.
Request Availability →
04
Fine Wire
Inconel 600 fine wire down to 0.10 mm for weaving and filtration.
Request Availability →
05
Straightened and Cut Wire
Inconel 600 wire straightened and cut to length for cold-heading blanks.
Request Availability →
06
Wire Rod
Inconel 600 drawing stock from 6.0 to 20.0 mm for downstream redraw.
Request Availability →
07
Custom Wire
Custom Inconel 600 wire produced to your diameter, temper and pack.
Request Availability →
APPLICATIONS
Engineered For Demanding Industries
Buyers specify Inconel 600 wire wherever parts need strength under heat, caustic or corrosive load. Specifically, the applications below show typical Inconel 600 Wire uses.
Discuss Your Application →
01
Woven Mesh and Screens
Inconel 600 wire weaves into mesh that resists hot corrosive media.
02
Springs
Spring-temper Inconel 600 wire forms coils holding load at elevated temperature.
03
Cold-Formed Fasteners
Annealed Inconel 600 wire cold-heads into rivets and special fasteners.
04
Filtration Elements
Wire supports Inconel 600 filtration cartridges in chemical service.
05
Thermocouple Hardware
Inconel 600 wire makes sheath and support parts for temperature sensing.
06
Cable and Rope Cores
Wire serves Inconel 600 strands for high-temperature hanging systems.
07
Electrical Heating Supports
Inconel 600 wire forms supports near resistive heating elements.
08
Custom Cold Forming
Annealed Inconel 600 wire feeds bespoke forming and coiling work.
TECHNICAL INFORMATION
Technical Specifications
Detailed technical information including chemical composition, mechanical properties, standards and available dimensions.
Chemical Composition
Nickel sits at 72.0% minimum inside the UNS N06600 window that ASTM B166 sets for this wire, with chromium held between 14.0% and 17.0%. Consequently, the iron-bearing balance of this wire keeps its matrix austenitic through repeated heating and cooling.
Importantly, the full composition table on the Inconel 600 material page lists every element against its ASTM B166 limit for this wire.
Mechanical Properties
The minimum room-temperature strength values below follow ASTM B166 Table 3 for Inconel 600 wire. Importantly, these properties apply to the wire as delivered.
| Temper | Wire Diameter | Tensile Strength Requirement | Typical Use |
|---|---|---|---|
| Annealed | Below 0.81 mm (0.032 in.) | ≥80 ksi (552 MPa), up to 115 ksi (793 MPa) | Softest wire for weaving, forming and redrawing |
| Annealed | 0.81 mm and above | ≥80 ksi (552 MPa), up to 105 ksi (724 MPa) | General-purpose soft Inconel 600 wire |
| Regular Temper (cold worked) | All sizes | ≥120 ksi (827 MPa) | Screens, fasteners and cold-formed parts |
| Spring Temper | Up to 1.45 mm (0.057 in.) | ≥185 ksi (1276 MPa) | Fine precision springs |
| Spring Temper | 1.45–2.90 mm | ≥175 ksi (1207 MPa) | Medium springs |
| Spring Temper | 2.90–5.82 mm | ≥170 ksi (1172 MPa) | Larger springs |
| Spring Temper | 5.82–14.3 mm | ≥140–165 ksi (965–1138 MPa) | Heavy springs, decreasing with diameter |
- Per the ASTM B166 note, the wire properties above do not apply after the wire is straightened and cut.
Physical Properties
Published references put the density of this wire near 8.47 g/cm³ and its melting range at 1370–1413 °C. Moreover, the solid-solution matrix keeps this wire non-magnetic right up to ambient temperature.
In addition, the physical properties table on the Inconel 600 material page carries the modulus, the thermal conductivity and the remaining design values behind this wire.
Delivery Conditions
Therefore, Inconel 600 wire ships in the delivery states below. Specifically, the hot-rolled states supply drawing stock, while the cold-drawn states are finished product wire.
| Delivery State | Typical Diameter | Notes |
|---|---|---|
| Hot rolled / black (wire rod) | 6.0–20.0 mm | Drawing stock with mill scale, for redraw or machining |
| Hot rolled, solution annealed | 5.5–19 mm | Coil form, softened for downstream forming |
| Hot rolled, solution annealed and pickled | 5.5–19 mm | Descaled to a bright silver surface |
| Cold drawn, annealed | 0.2–14.3 mm | Softest product wire, best ductility |
| Cold drawn, regular temper | 0.2–14.3 mm | ≥120 ksi (827 MPa) strength for screens and parts |
| Cold drawn, spring temper | Up to 14.3 mm | Highest strength, seven diameter grades per B166 |
Delivery note: hot-rolled states ship as coiled wire rod for redraw, while finished product wire ships per ASTM B166 in the annealed, regular or spring temper.
Standards
ASTM B166 is the principal UNS N06600 wire document for this wire, issued by ASTM International. Moreover, SAE AMS 5687 covers aerospace procurement of this wire and BS 3075 NA14 covers the British designation.
| Standard | Product or Application |
|---|---|
| ASTM B166 | Nickel-chromium-iron alloy rod, bar and cold-worked wire |
| ASME SB166 | ASME counterpart for pressure equipment |
| SAE AMS 5687 | Nickel alloy 600 wire, annealed, 0.05 mm and above |
Above all, the full standards list on the Inconel 600 material page adds the European designations and the remaining product documents for this wire.
Dimensions
Therefore, Inconel 600 wire dimensions depend on the manufacturing route, standard and order quantity. The table below lists typical supply ranges; please confirm your size in the inquiry.
| Product Form | Typical Supply | Length |
|---|---|---|
| Wire (Coil / Spool) | 0.2–12 mm dia., typical enumeration 0.10–5.00 mm | Coil, spool or custom |
| Fine Wire | 0.10–0.80 mm dia. | Spool |
| Wire Rod (Drawing Stock) | 6.0–20.0 mm dia. | Coil |
| Spring Temper Wire | Up to 14.3 mm dia. | Coil or spool |
| Straightened and Cut Wire | 1.0–14.3 mm dia. | Straight lengths |
| Custom Wire | To drawing | Custom |
Available wire dimensions depend on the manufacturing route, standard, material condition and order quantity. Please confirm your required wire size, section and length in the inquiry.
Surface Finishes
Therefore, the surface condition decides how this wire machines, feeds and resists scaling in service. Specifically, we agree the finish on this Inconel 600 wire with your order.
| Surface Condition | Typical Use |
|---|---|
| Bright Annealed | Protective-atmosphere annealing leaves this Inconel 600 wire oxide-free. |
| Pickled | Acid cleaning descaled this Inconel 600 wire after annealing. |
| Coated | A light lubricant coating on this wire for downstream redrawing. |
Meanwhile, the surface finishes table on the Inconel 600 material page lists the remaining conditions we quote for this wire.
Related forms from the same heat cover Inconel 600 Billet, Inconel 600 Bright Bar and Inconel 600 Flat Bar when your wire order needs them.
TECHNICAL DOCUMENTATION
Download Technical Datasheet
Get detailed information including specifications, standards, dimensions and material properties.
HOW TO START
Start Your Order in 6 Simple Steps
From first inquiry to delivered Inconel 600 wire, our process keeps you informed at every stage. Therefore, most Inconel 600 wire orders move from inquiry to shipment in under three weeks.
1
Send Your Inquiry
Send your Inconel 600 wire grade, size, quantity and standard.
2
Confirm the Specification
State ASTM B166 or AMS with the Inconel 600 wire condition and finish you need.
3
Review the Quotation
Receive pricing for Inconel 600 wire by dimension, quantity and destination.
4
Confirm the Order
Approve the Inconel 600 wire technical spec, terms and schedule.
5
Production and Inspection
We make and inspect your Inconel 600 wire to the agreed specification.
6
Shipment and Documentation
Receive Inconel 600 wire with EN 10204 3.1 MTC and export papers.
CERTIFICATIONS & QUALITY DOCUMENTATION
Certifications & Quality Documentation
Our production and inspection processes are certified to international standards, and every delivery ships with EN 10204 3.1 mill test certificates.
ISO 9001:2015
Quality Management System
PED 2014/68/EU
Pressure Equipment Directive
ASTM / ASME
Material Standards Compliance
EN 10204 3.1
Mill Test Certificates
FAQ
Frequently Asked Questions
Which ASTM specification applies to Inconel 600 Wire?
ASTM B166 and ASME SB166 cover Inconel 600 wire; SAE AMS 5687 and DIN 17753 serve wire procurement.
What is the finest Inconel 600 wire you supply?
Inconel 600 wire draws to 0.10 mm; typical product wire spans 0.2 to 12 mm.
Which tempers are available for Inconel 600 wire?
Inconel 600 wire ships annealed, regular temper or spring temper, with hot-rolled drawing stock available.
How is the price of Inconel 600 wire calculated?
Mainly by weight for Inconel 600 wire with the prevailing nickel surcharge.
What is your MOQ for Inconel 600 wire?
One spool for many common Inconel 600 wire diameters.
What are your trade terms for Inconel 600 wire?
Mainly FOB for Inconel 600 wire; EXW and CIF also available.
What is the lead time for Inconel 600 wire?
Stock Inconel 600 wire sizes ship in 7-15 days. Custom sizes take a little longer.
Do you provide EN 10204 3.1 or 3.2 certificates for Inconel 600 wire?
Yes. Every Inconel 600 wire delivery includes 3.1; 3.2 with third-party endorsement on request.
Do strength values hold after straightening Inconel 600 wire?
No. Per ASTM B166, Inconel 600 wire mechanical values do not apply after straightening and cutting.
What information should I include in an Inconel 600 wire inquiry?
Please send diameter, temper, coil weight, standard and destination so we can quote Inconel 600 wire accurately.
REQUEST FOR QUOTATION
Need A Custom Alloy Solution?
Inconel 600 wire from Southerly Alloy covers standard and custom supply to ASTM B166. Send your Inconel 600 wire grade, dimensions, quantity and delivery needs to receive a quotation.
Specifically, our team reviews your Inconel 600 wire specification, confirms the condition and finish, and returns pricing with clear Incoterms. We then produce and inspect your Inconel 600 wire before shipping it with full export documentation.
