01

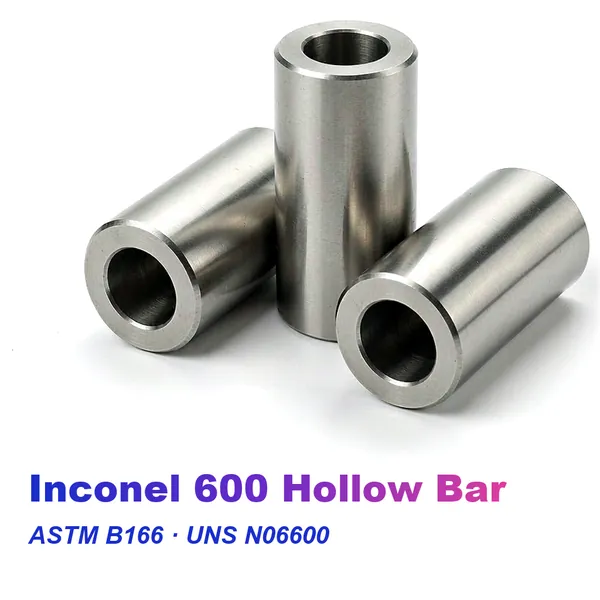

Machined-Bore Hollow Bar
Inconel 600 hollow bar delivered with a finish-bored inside diameter.
Request Availability →Inconel 600 Hollow Bar
Solid-solution nickel-chromium-iron hollow bar with machined bore to ASTM B166 for bushings, bearings and cylinder components.
Mill-Certified Material
Inconel 600 hollow bar carries full heat-number traceability on every order.
Specification Supply
Specifically, we match Inconel 600 hollow bar to your ASTM B166 condition, size and finish.
Fast Global Delivery
Therefore, our team ships Inconel 600 hollow bar worldwide with complete export papers.
PRODUCT OVERVIEW
About Inconel 600 Hollow Bar
Inconel 600 hollow bar is a solid-solution nickel-chromium-iron alloy with 72% nickel minimum. Inconel 600 hollow bar keeps useful strength from cryogenic temperature up to about 1093 °C in oxidizing service.
We supply Inconel 600 hollow bar as hot-worked, cold-drawn, annealed, peeled or centerless-ground stock to ASTM B166. Every Inconel 600 hollow bar order carries heat-number traceability and EN 10204 3.1 documents for incoming inspection.
In addition, Inconel 600 hollow bar shares the UNS N06600 chemistry detailed on our Inconel 600 material page for alloy data.
PRODUCT FEATURES
Key Features of Inconel 600 Hollow Bar
Inconel 600 hollow bar is a solid-solution nickel-chromium-iron alloy supplied to ASTM B166 and ASME SB166. We provide UNS N06600 hollow bar in annealed and machined-bore conditions for chemical processing, heat treatment and high-temperature service. Every Inconel 600 hollow bar order carries heat-number traceability and EN 10204 3.1 mill test reports.
Inconel 600
High-Temperature Strength
For example, annealed Hollow Bar keeps dependable load capacity near 1000 °C.
01
Oxidation Resistance
In addition, Inconel 600 hollow bar resists oxidation in hot air up to about 1093 °C.
02
Chloride Stress-Corrosion Resistance
Moreover, Inconel 600 hollow bar resists chloride cracking that troubles stainless steels.
03
Caustic Service
Specifically, Hollow Bar handles hot caustic liquors where many alloys fail.
04
Cryogenic Capability
Hollow Bar retains useful toughness down to cryogenic temperatures.
05
Good Workability
We form and weld Inconel 600 hollow bar readily in the annealed condition.
06
Full Traceability
Specifically, every Inconel 600 hollow bar order carries heat numbers and EN 10204 3.1 documents.
07
Custom Supply
We cut Inconel 600 hollow bar to your size, length, condition and packing.
08
WHY CHOOSE US
Why Choose Inconel 600
Inconel 600 hollow bar needs a supply partner who controls specification, quality and delivery. Southerly Alloy manages your Inconel 600 hollow bar order from review to shipment with traceable material.
01
Specification Compliance
We match Inconel 600 hollow bar to your ASTM B166 or AMS requirement and finish.
02
Quality and Traceability
Specifically, every Inconel 600 hollow bar batch ships with EN 10204 3.1 certificates and heat numbers.
03
Flexible Supply
In addition, we cut or wind Inconel 600 hollow bar to custom sizes, lengths and packing.
04
Responsive Service
As a result, our team confirms Inconel 600 hollow bar specifications quickly and ships with full export papers.
MANUFACTURING PROCESS
Reliable Production For Critical Applications
From melting to final check, we process Inconel 600 hollow bar to your ordered ASTM B166 condition. We control and document each Inconel 600 hollow bar stage with full heat-number traceability.
01
Raw Material Selection
We weigh nickel, chromium and iron so Inconel 600 hollow bar meets UNS N06600 chemistry.
02
Vacuum Induction Melting
First, we melt the Inconel 600 hollow bar charge under vacuum to limit gas pickup.
03
ESR Remelting
Next, electroslag remelting refines the Inconel 600 hollow bar electrode to cut inclusions where specified.
04
Hot Forging and Rolling
Then, we forge and hot roll the ingot into Inconel 600 hollow bar with controlled working.
05
Cold Drawing or Peeling
After that, we cold draw or peel the Inconel 600 hollow bar to the ordered size and finish.
06
Annealing
Subsequently, we anneal the Inconel 600 hollow bar near 900–1050 °C and cool it rapidly.
07
Dimensional and Surface Checks
We verify Inconel 600 hollow bar size, straightness and surface before release.
08
Final Inspection and MTR
Finally, we confirm Inconel 600 hollow bar chemistry and properties, then issue the MTR.
Manufacturing Facility
MANUFACTURING CAPABILITY
Advanced Production For Nickel Alloy Products
Specifically, Southerly Alloy supplies Inconel 600 hollow bar across the common ASTM B166 forms and conditions. We confirm Inconel 600 hollow bar size, length, straightness and finish against your order. Moreover, hollow bar is one section in our Inconel 600 bar and rod program.
20,000+ m²
Factory Area
Specifically, modern production facilities for Inconel 600 hollow bar and dedicated workshops.
50+
Production Machines
Advanced equipment for Inconel 600 hollow bar manufacturing.
600 Tons
Monthly Capacity
Inconel 600 hollow bar output across standard and custom sizes.
30+
Technical Engineers
Experienced engineers for Inconel 600 hollow bar specification support.
30+ Countries
Export Reach
In addition, reliable logistics for Inconel 600 hollow bar with full documentation.
QUALITY ASSURANCE
Strict Quality Control From Production To Delivery
Every Inconel 600 hollow bar batch passes inspection before release. In addition, we check Inconel 600 hollow bar chemistry, mechanical properties, dimensions and surface under our ISO 9001 system.
01
Material Verification
We confirm Inconel 600 hollow bar grade and heat against your purchase order.
02
Dimensional Inspection
Specifically, we measure Inconel 600 hollow bar size, length and straightness to standard and drawing.
03
Testing and Inspection
In addition, we arrange tensile, hardness and NDT tests where your Inconel 600 hollow bar specification requires.
04
Certification and Traceability
Every Inconel 600 hollow bar delivery includes EN 10204 3.1 certificates with heat numbers.
PRODUCT FORMS
Available Product Forms
Inconel 600 hollow bar comes in several conditions and variants for different machining and service needs. Specifically, the list below shows the common Inconel 600 Hollow Bar forms we supply.
02
Thick-Wall Hollow Bar
Heavy-wall Inconel 600 hollow bar for bushings under high load.
Request Availability →
03
Bushings Stock
Inconel 600 hollow bar sized for sleeves, bushings and bearing blanks.
Request Availability →
04
Custom Hollow Bar
Custom Inconel 600 hollow bar produced to your OD, bore and length.
Request Availability →
APPLICATIONS
Engineered For Demanding Industries
Buyers specify Inconel 600 hollow bar wherever parts need strength under heat, caustic or corrosive load. Specifically, the applications below show typical Inconel 600 Hollow Bar uses.
Discuss Your Application →
01
High-Temperature Bushings
Inconel 600 hollow bar machines into bushings running near furnace heat.
02
Bearing Sleeves
Hollow bar supplies Inconel 600 sleeves for hot corrosive locations.
03
Cylinder Components
Hollow bar forms Inconel 600 cylinder bodies and guides.
04
Chemical Equipment
Inconel 600 hollow bar builds spools and bodies inside corrosive units.
05
Heat-Treatment Fixtures
Hollow bar makes roller and post components for furnace fixtures.
06
Custom Bore Work
Machined-bore Inconel 600 hollow bar feeds bespoke component work.
TECHNICAL INFORMATION
Technical Specifications
Detailed technical information including chemical composition, mechanical properties, standards and available dimensions.
Chemical Composition
Nickel sits at 72.0% minimum inside the UNS N06600 window that ASTM B166 sets for this hollow bar, with chromium held between 14.0% and 17.0%. Consequently, the iron-bearing balance of this hollow bar keeps its matrix austenitic through repeated heating and cooling.
Importantly, the full composition table on the Inconel 600 material page lists every element against its ASTM B166 limit for this hollow bar.
Mechanical Properties
The minimum room-temperature values below apply to UNS N06600 bar in the annealed and as-worked conditions per ASTM B166. The applicable condition and dimension govern final acceptance.
| Condition | Tensile Strength | Yield Strength, 0.2% Offset | Elongation |
|---|---|---|---|
| Cold-worked / hot-worked, annealed | ≥80 ksi (550 MPa) | ≥35 ksi (240 MPa) | ≥30% |
| Hot-worked, as worked | ≥85–95 ksi (585–655 MPa) | ≥35–45 ksi (240–310 MPa) | ≥20–30% |
| Cold-worked, as worked | ≥105–120 ksi (725–825 MPa) | ≥80–90 ksi (550–620 MPa) | ≥7–12% |
Physical Properties
Published references put the density of this hollow bar near 8.47 g/cm³ and its melting range at 1370–1413 °C. Moreover, the solid-solution matrix keeps this hollow bar non-magnetic right up to ambient temperature.
In addition, the physical properties table on the Inconel 600 material page carries the modulus, the thermal conductivity and the remaining design values behind this hollow bar.
Heat Treatment
Inconel 600 hollow bar is a solid-solution alloy, so annealing — not aging — sets its final softness. We supply the hollow bar in the condition below that your application needs.
| Condition | Typical Treatment |
|---|---|
| Annealed | Held near 900–1050 °C (1650–1920 °F) per section size, then rapidly cooled |
| Stress Relieved | Available when specified for the application |
| Custom Condition | Heat treatment according to the agreed specification |
Standards
ASTM B166 is the principal UNS N06600 bar and rod document for this hollow bar, issued by ASTM International. Moreover, ASME SB166 covers pressure equipment built from this hollow bar while SAE AMS 5665 covers aerospace procurement.
| Standard | Product or Application |
|---|---|
| ASTM B166 | Nickel-chromium-iron alloy rod, bar and wire |
| ASME SB166 | ASME counterpart for pressure equipment |
| SAE AMS 5665 | Nickel alloy 600 bars, forgings and rings |
Above all, the full standards list on the Inconel 600 material page adds the European designations and the remaining product documents for this hollow bar.
Dimensions
Therefore, Inconel 600 hollow bar dimensions depend on the manufacturing route, standard and order quantity. The table below lists typical supply ranges; please confirm your size in the inquiry.
| Product Form | Typical Supply | Length |
|---|---|---|
| Hollow Bar | OD 50–500 mm × wall 5–50 mm | Single Random, Double Random or Custom |
| Machined-Bore Hollow Bar | OD 50–400 mm × bore to drawing | Custom |
| Thick-Wall Hollow Bar | OD 80–500 mm × wall 15–50 mm | Custom |
| Bushings Stock | OD 50–250 mm | Custom |
| Custom Hollow Bar | To drawing | Custom |
Available hollow bar dimensions depend on the manufacturing route, standard, material condition and order quantity. Please confirm your required hollow bar size, section and length in the inquiry.
Surface Finishes
Therefore, the surface condition decides how this hollow bar machines, feeds and resists scaling in service. Specifically, we agree the finish on this Inconel 600 hollow bar with your order.
| Surface Condition | Typical Use |
|---|---|
| Hot Finished | As-hot-worked stock for hollow bar, ordered where every face will be machined. |
| Cold Drawn | Close diameter control on this hollow bar, with the drawing pass lifting strength. |
| Polished | Reduced roughness on this hollow bar for handled or sealing surfaces. |
Meanwhile, the surface finishes table on the Inconel 600 material page lists the remaining conditions we quote for this hollow bar.
Related forms from the same heat cover Inconel 600 Round Bar, Inconel 600 Square Bar and Inconel 600 Threaded Rod when your hollow bar order needs them.
TECHNICAL DOCUMENTATION
Download Technical Datasheet
Get detailed information including specifications, standards, dimensions and material properties.
HOW TO START
Start Your Order in 6 Simple Steps
From first inquiry to delivered Inconel 600 hollow bar, our process keeps you informed at every stage. Therefore, most Inconel 600 hollow bar orders move from inquiry to shipment in under three weeks.
1
Send Your Inquiry
Send your Inconel 600 hollow bar grade, size, quantity and standard.
2
Confirm the Specification
State ASTM B166 or AMS with the Inconel 600 hollow bar condition and finish you need.
3
Review the Quotation
Receive pricing for Inconel 600 hollow bar by dimension, quantity and destination.
4
Confirm the Order
Approve the Inconel 600 hollow bar technical spec, terms and schedule.
5
Production and Inspection
We make and inspect your Inconel 600 hollow bar to the agreed specification.
6
Shipment and Documentation
Receive Inconel 600 hollow bar with EN 10204 3.1 MTC and export papers.
CERTIFICATIONS & QUALITY DOCUMENTATION
Certifications & Quality Documentation
Our production and inspection processes are certified to international standards, and every delivery ships with EN 10204 3.1 mill test certificates.
ISO 9001:2015
Quality Management System
PED 2014/68/EU
Pressure Equipment Directive
ASTM / ASME
Material Standards Compliance
EN 10204 3.1
Mill Test Certificates
FAQ
Frequently Asked Questions
Which ASTM specification applies to Inconel 600 Hollow Bar?
ASTM B166 and ASME SB166 cover Inconel 600 hollow bar; SAE AMS 5665 serves aerospace procurement.
How is the price of Inconel 600 hollow bar calculated?
Mainly by weight for Inconel 600 hollow bar with the prevailing nickel surcharge.
Can Inconel 600 hollow bar be welded?
Yes. We weld Inconel 600 hollow bar readily in the annealed condition, matching filler to the joint.
Is Inconel 600 hollow bar easy to machine?
We machine Inconel 600 hollow bar in the annealed state with rigid setups and positive cuts.
What heat treatment does Inconel 600 hollow bar need?
Annealing near 900–1050 °C sets the softness of Inconel 600 hollow bar; no aging step is required.
What applications use Inconel 600 hollow bar?
Inconel 600 hollow bar serves chemical heaters, furnace fixtures, caustic equipment and nuclear ancillary parts.
What is your MOQ for Inconel 600 hollow bar?
One piece for many common Inconel 600 hollow bar sizes.
What are your trade terms for Inconel 600 hollow bar?
Mainly FOB for Inconel 600 hollow bar; EXW and CIF also available.
What is the lead time for Inconel 600 hollow bar?
Stock Inconel 600 hollow bar sizes ship in 7-15 days. Custom sizes take a little longer.
Do you provide EN 10204 3.1 or 3.2 certificates for Inconel 600 hollow bar?
Yes. Every Inconel 600 hollow bar delivery includes 3.1; 3.2 with third-party endorsement on request.
REQUEST FOR QUOTATION
Need A Custom Alloy Solution?
Inconel 600 hollow bar from Southerly Alloy covers standard and custom supply to ASTM B166. Send your Inconel 600 hollow bar grade, dimensions, quantity and delivery needs to receive a quotation.
Specifically, our team reviews your Inconel 600 hollow bar specification, confirms the condition and finish, and returns pricing with clear Incoterms. We then produce and inspect your Inconel 600 hollow bar before shipping it with full export documentation.
