Hot-Worked Square Bar
As-rolled squares for frames that will be machined or welded.

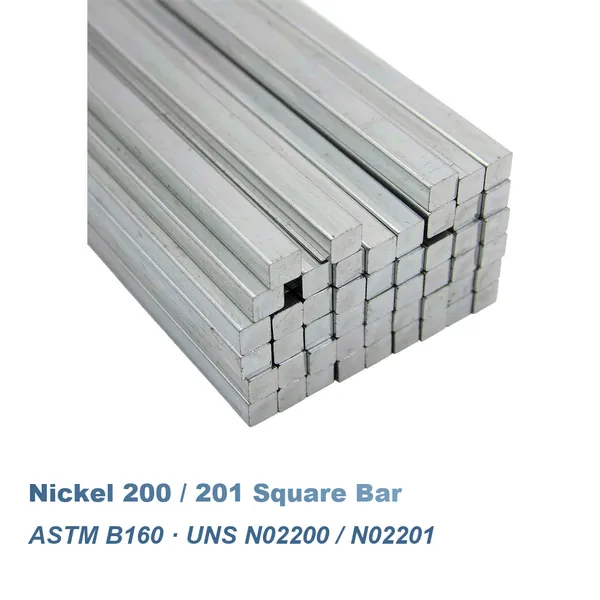

Request Availability →Nickel 200 / 201 Square Bar
Commercially pure nickel square bar to ASTM B160 for busbar clamps, support frames and machined blocks in caustic service.
Alkali Service Stock
We match every Nickel 200 / 201 square bar we quote to the caustic duty your plant describes.
Grade Settled Before Pricing
Specifically, we fix grade 200 or grade 201 for your square bar against the 315 °C service limit before pricing it.
Papers Ready for Inward Inspection
Moreover, your Nickel 200 / 201 square bar arrives with mill certificate, packing list and export documents in one set.
PRODUCT OVERVIEW
About Nickel 200 / 201 Square Bar
Nickel 200 / 201 square bar arrives in UNS N02200 or N02201, the commercially pure grades holding 99.0% nickel and above. Caustic soda, potash and alkaline salt solutions leave this square bar untouched at every concentration.
We supply Nickel 200 / 201 square bar to ASTM B160 and ASME SB160 in hot-worked, cold-worked and annealed conditions. Your order for this square bar carries heat-number records and EN 10204 3.1 paperwork for goods-in checks. Moreover, section, straightness and finish on the square bar are settled before the order is released.
Meanwhile, the chemistry and the design values behind Nickel 200 / 201 square bar sit on our Nickel 200 / 201 material page for cross-reference.
PRODUCT FEATURES
Key Features of Nickel 200 / 201 Square Bar
Nickel 200 / 201 square bar is supplied in UNS N02200 or N02201, the commercially pure grades that hold 99.0% nickel and above. We provide ASTM B160 and ASME SB160 square bar in hot-worked and cold-finished sections, cut to length for caustic plants, chlor-alkali works and electrochemical lines. Every Nickel 200 / 201 square bar order carries heat-number traceability, EN 10204 3.1 mill test reports and export documentation.
Nickel 200 / Nickel 201
Caustic Resistance Through the Range
For example, this square bar handles sodium hydroxide and potash at every concentration, including molten alkali salt.
01
Chloride Cracking Immunity
Specifically, neutral and alkaline chlorides bring no stress-corrosion cracking to this square bar.
02
Current-Carrying Capability
Moreover, this square bar conducts current well enough for electrodes, busbars and terminals.
03
Magnetic Switching Behaviour
In addition, this square bar stays ferromagnetic below a Curie point near 360 °C for solenoid and switching parts.
04
Grade 201 for Hot Duty
The 0.02% carbon cap removes graphitization, so this square bar serves above 315 °C.
05
Machined Finish Stability
Furthermore, this square bar machines to a clean finish and holds dimension in service.
06
Cold-Worked Strength Levels
Cold-worked this square bar reaches 550 MPa tensile without a further heat treatment step.
07
Envelope Limits Stated
Wet hydrofluoric acid and oxidizing acids sit outside the envelope for this square bar.
08
WHY CHOOSE US
Why Choose Nickel 200 / Nickel 201
Frame and clamp work asks different questions of Nickel 200 / 201 square bar than round stock does. Specifically, we check corner condition, squareness and length on this square bar before quoting.
01
Duty Read Before Pricing
We record your caustic concentration, temperature and current load before proposing a condition for this square bar.
02
Certificates Tied to the Heat
Specifically, EN 10204 3.1 papers, heat numbers and PMI records follow each square bar delivery.
03
Trial Pieces and Container Lots
In addition, this square bar moves through one route whether you need a single length or a full container.
04
Terms Stated in Writing
Quotations for this square bar name the grade, section, condition and document set instead of leaving them open.
MANUFACTURING PROCESS
Reliable Production For Critical Applications
Bar production for Nickel 200 / 201 square bar runs from cathode selection to final packing. Our team logs each stage of this square bar route against its heat number.
01
Cathode Selection
From nickel cathode we set the carbon level that decides grade 200 or grade 201 for this square bar.
02
Melting and Refining
First, the charge for this square bar melts and refines under controlled practice.
03
Ingot Casting
Next, this square bar casts into ingots under controlled solidification.
04
Hot Reduction
Then, forging and rolling reduce the ingot to this square bar section.
05
Skin Removal
After that, peeling and grinding strip surface defects from this square bar.
06
Cold Finishing
Subsequently, drawing, turning or grinding brings this square bar to the ordered size and finish.
07
Straightening and Cutting
We straighten, square and cut this square bar to the ordered length.
08
Testing and Release
Finally, chemistry, tensile and dimensional checks clear this square bar for dispatch.
Manufacturing Facility
MANUFACTURING CAPABILITY
Advanced Production For Nickel Alloy Products
Stock, cut lengths and job lots of Nickel 200 / 201 square bar leave on one schedule. We confirm section and finish of this square bar before release. Moreover, this square bar sits inside our Nickel 200 / 201 bar and rod program.
20,000+ m²
Factory Area
Specifically, melting, forging, drawing and inspection halls serving Nickel 200 / 201 square bar under one roof.
50+
Production Machines
Equipment covering hot working, annealing and cold finishing for this square bar.
600 Tons
Monthly Capacity
Nickel 200 / 201 square bar output across stock and made-to-order sizes.
30+
Technical Engineers
Metallurgists who set the grade and condition of this square bar against your duty.
30+ Countries
Export Reach
In addition, documented logistics carry this square bar worldwide.
QUALITY ASSURANCE
Strict Quality Control From Production To Delivery
No Nickel 200 / 201 square bar leaves the yard before the heat has passed our ISO 9001 inspection route. In addition, we check this square bar against the chemistry, mechanical properties, dimensions and surface the order names.
01
Heat Identification
We confirm the grade and heat number of this square bar against your purchase order.
02
Dimensional Verification
Specifically, size, length and straightness of this square bar go against standard and drawing tolerances.
03
Property Testing
In addition, tensile, hardness and NDT checks run wherever your square bar specification requires them.
04
Certificate Assembly
Every square bar delivery carries EN 10204 3.1 documents keyed to the heat number.
PRODUCT FORMS
Available Product Forms
Several conditions and variants of Nickel 200 / 201 square bar cover different machining and service needs. Therefore, the list below shows the Square Bar variants we quote most often.
02
Cold-Drawn Square Bar
Drawn squares with tighter sectional tolerance for fixtures.
Request Availability →
03
Bright Square Bar
Bright squares with clean faces and edges for visible frames.
Request Availability →
04
Peeled Square Bar
Peeled squares with a machined skin ready for flat work.
Request Availability →
05
Forged Square Bar
Forged squares with a refined structure for heavy supports.
Request Availability →
06
Custom Square Bar
Custom square sections cut and finished to your drawing.
Request Availability →
APPLICATIONS
Engineered For Demanding Industries
Nickel 200 / 201 square bar is chosen where caustic media and current decide component life. Specifically, the applications below show where this square bar serves.
Discuss Your Application →
01
Busbar Clamps
Clamping blocks that grip conductive bar in electrical assemblies.
02
Support Frames
Frames carrying vessels and equipment in caustic plants.
03
Plating Grid Bars
Grid members suspending work in electroplating cells.
04
Machined Blocks
Blocks machined into valve and pump components.
05
Caustic Bath Frames
Immersion frames for cleaning and pickling lines.
06
Electrode Holders
Holders locating electrodes in electrochemical cells.
07
Food-Plant Frames
Cleanable frames for mixers and handling equipment.
08
Custom Structures
Bespoke fabricated assemblies built from square sections.
TECHNICAL INFORMATION
Technical Specifications
Detailed technical information including chemical composition, mechanical properties, standards and available dimensions.
Chemical Composition
UNS N02200 and N02201 share one nickel balance of 99.0% minimum, and the carbon ceiling alone separates the two grades inside this square bar, at 0.15% for grade 200 against 0.02% for grade 201. Above all, that carbon gap decides how far this square bar can run in hot service.
For an element-by-element account of every limit, open the composition breakdown held on the Nickel 200 / 201 material page for this square bar.
Mechanical Properties
The minimum room-temperature values below apply to UNS N02200 and N02201 bar in the cold-worked, hot-worked and annealed conditions per ASTM B160. Condition and section size govern final acceptance of Nickel 200 / 201 square bar.
| Condition and Section | Tensile Strength, min. | Yield Strength (0.2%), min. | Elongation, min. |
|---|---|---|---|
| Nickel 200, cold-worked, rounds ≤ 25.4 mm (1 in.) | ≥80 ksi (550 MPa) | ≥60 ksi (415 MPa) | 10% |
| Nickel 200, cold-worked, rounds 25.4–101.6 mm (1–4 in.) | ≥75 ksi (515 MPa) | ≥50 ksi (345 MPa) | 15% |
| Nickel 200, cold-worked, squares, hexagons and rectangles | ≥65 ksi (450 MPa) | ≥40 ksi (275 MPa) | 25% |
| Nickel 200, hot-worked, all sections and sizes | ≥60 ksi (415 MPa) | ≥15 ksi (105 MPa) | 35% |
| Nickel 200, annealed, rods and bars of all sizes | ≥55 ksi (380 MPa) | ≥15 ksi (105 MPa) | 40% |
| Nickel 201, hot-worked, all sections and sizes | ≥50 ksi (345 MPa) | ≥10 ksi (70 MPa) | 40% |
| Nickel 201, annealed, all products and sizes | ≥50 ksi (345 MPa) | ≥10 ksi (70 MPa) | 40% |
- Elongation requirements do not apply to sections under 2.4 mm (3/32 in.), and the ordered condition together with the section size decides what the certificate states.
Physical Properties
Published references give this square bar a density near 8.89 g/cm³ and a melting range of 1435–1446 °C. Moreover, the two grades part company on thermal conductivity, so design work on this square bar starts from the grade actually ordered.
In addition, the physical properties table on the Nickel 200 / 201 material page carries the thermal conductivity, the electrical resistivity and the remaining design values behind this square bar.
Heat Treatment
Nickel 200 / 201 square bar softens by annealing rather than by aging. We supply this square bar in the condition below that your duty calls for.
| Condition | Typical Treatment |
|---|---|
| Annealed | Held between 705 and 925 °C (1300–1697 °F), then cooled |
| Stress Relieved | 705–870 °C (1300–1600 °F) where straightness or residual stress demands it |
| Custom Condition | Heat treatment according to the agreed specification |
Standards
ASTM B160 is the principal UNS N02200 and N02201 bar and rod document for this square bar, issued by ASTM International. Moreover, ASME SB160 covers pressure equipment built from this square bar, and no aerospace material specification reaches either grade.
| Standard | Product or Application |
|---|---|
| ASTM B160 | Nickel rod and bar, UNS N02200 and N02201 |
| ASME SB160 | ASME counterpart for pressure equipment |
| DIN 17752 | Nickel bar and rod, European procurement |
Finally, the full standards list on the Nickel 200 / 201 material page adds the European designations, the pressure-code documents and the forgings specification behind this square bar.
Dimensions
Dimensions of Nickel 200 / 201 square bar follow the manufacturing route, the standard and the order quantity. The table below lists typical supply ranges, so please confirm your size in the inquiry.
| Product Form | Typical Supply | Length |
|---|---|---|
| Square Bar | 10–150 mm | Cut to length or random |
| Hot-Worked Square Bar | 25–150 mm | Cut to length or random |
| Cold-Drawn Square Bar | 10–80 mm | Cut to length |
| Bright Square Bar | 10–100 mm | Cut to length or random |
| Peeled Square Bar | 20–100 mm | Cut to length |
| Forged Square Bar | 100–300 mm | Cut to length |
| Custom Square Bar | To drawing | Custom |
Available sizes of this square bar depend on the manufacturing route, the standard, the material condition and the order quantity. Please confirm your required square bar size, section and length in the inquiry.
Surface Finishes
Finish decides what happens at the next operation, whether that is a turning pass, a grinding pass or a welding cell. Specifically, we agree the finish on this Nickel 200 / 201 square bar before we release the order.
| Surface Condition | Typical Use |
|---|---|
| Hot-Worked | As-rolled surface on this square bar, for parts that will be machined all over. |
| Annealed and Pickled | Descaling leaves this square bar free of mill scale for fabrication work. |
| Peeled | A machined skin on this square bar with uniform diameter for turning. |
Meanwhile, the surface finishes table on the Nickel 200 / 201 material page lists the remaining conditions we quote for this square bar.
Related forms from the same heat cover Nickel 200 / 201 Threaded Rod, Nickel 200 / 201 Welding Wire and Nickel 200 / 201 Wire when your square bar order needs them.
TECHNICAL DOCUMENTATION
Download Technical Datasheet
Get detailed information including specifications, standards, dimensions and material properties.
HOW TO START
Start Your Order in 6 Simple Steps
One coordinator carries your Nickel 200 / 201 square bar order from first question to loading. Therefore, most orders for this square bar move from quotation to dispatch inside three weeks.
1
Send the Duty Data
Give the size, quantity, standard and the caustic duty your square bar will see.
2
Fix the Grade and Condition
Then we set grade 200 or 201 and the delivery condition for this square bar.
3
Review the Offer
Receive pricing for this square bar by dimension, quantity and destination port.
4
Approve the Order
Approve the specification, terms and schedule for this square bar in writing.
5
Witness Points Agreed
Any third-party inspection of this square bar is booked before production starts.
6
Dispatch and Documents
Receive this square bar with the mill certificate, packing list and shipping papers.
CERTIFICATIONS & QUALITY DOCUMENTATION
Certifications & Quality Documentation
Our production and inspection processes are certified to international standards, and every delivery ships with EN 10204 3.1 mill test certificates.
ISO 9001:2015
Quality Management System
PED 2014/68/EU
Pressure Equipment Directive
ASTM / ASME
Material Standards Compliance
EN 10204 3.1
Mill Test Certificates
FAQ
Frequently Asked Questions
Which standard covers Nickel 200 / 201 Square Bar?
ASTM B160 and ASME SB160 govern this square bar for UNS N02200 and N02201 across round, square, hex and rectangular sections.
At what temperature should I order grade 201 instead of grade 200?
Above about 315 °C in continuous service, because grade 200 graphitizes there and grade 201 does not. Both grades suit cooler square bar duty.
Is either grade suitable for wet hydrofluoric acid?
No. Wet hydrofluoric acid attacks both grades, so a copper-nickel alloy such as Monel 400 is the usual answer for that square bar enquiry.
Can this square bar be machined and welded?
Yes. This square bar machines to a clean finish, and GTAW with ERNi-1 filler joins it without difficulty.
How is the price of this square bar calculated?
Pricing follows weight for this square bar, with the nickel quotation fixed on the date you receive the offer.
What is your MOQ for this square bar?
A single piece covers many common sizes of this square bar.
What are your trade terms for this square bar?
FOB covers most orders for this square bar, and EXW or CIF terms are available when you ask.
What is the lead time for this square bar?
Stock sizes of this square bar dispatch in 7 to 15 days, while made-to-order sections take longer.
Do you provide EN 10204 3.1 or 3.2 certificates for this square bar?
Yes. Every heat of this square bar ships with 3.1, and a 3.2 endorsement is booked through the order.
What information should an enquiry for this square bar include?
Please send grade, section, diameter, length, condition, finish, quantity and destination so we can quote this square bar accurately.
REQUEST FOR QUOTATION
Need A Custom Alloy Solution?
Nickel 200 / 201 square bar from Southerly Alloy covers standard and custom supply to ASTM B160. Send your size, quantity and condition for this square bar, along with your destination port, to receive a quotation.
Specifically, we review your specification for this square bar, confirm the grade and annealing route, and return pricing with clear terms. Production then follows the approved specification, and each delivery of this square bar ships with complete documentation.
