Monel 400 Ground Round Rod
Ground rounds ready for spindle and shaft work.

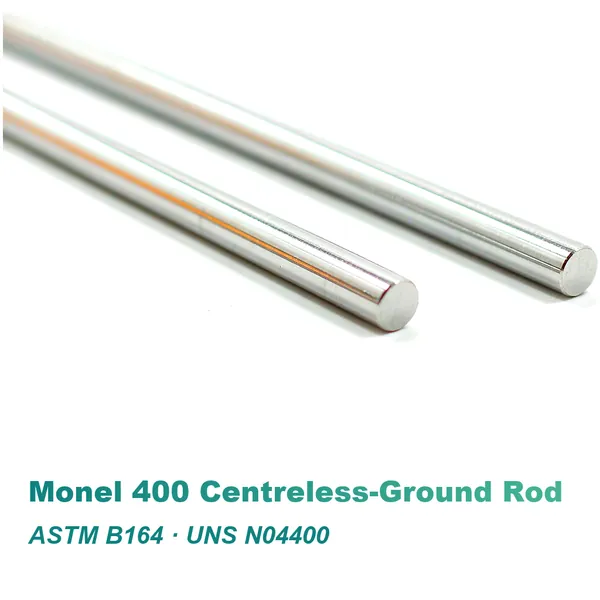

Request Availability →Monel 400 Centreless-Ground Rod
Monel 400 centreless-ground rod to ASTM B164 with tight diameter and straightness for spindles, pins and stems.
Seawater and HF Duty Stock
We hold this Monel 400 centreless-ground rod for alkylation, marine and brine work where 300-series stainless pits or cracks.
Strength from Cold Work Alone
Specifically, this Monel 400 centreless-ground rod cannot be age hardened, so a heavier drawing pass rather than a heat treatment raises its yield.
Documents Matched to the Order
Moreover, the mill certificate, hardness records and export papers for this Monel 400 centreless-ground rod reach you as one set.
PRODUCT OVERVIEW
About Monel 400 Centreless-Ground Rod
Monel 400 centreless-ground rod arrives in UNS N04400, the solid-solution nickel-copper alloy holding nickel at 63% and above. Flowing seawater, hydrofluoric acid and strong alkali leave this Monel 400 centreless-ground rod intact where stainless grades pit or crack.
We supply Monel 400 centreless-ground rod to ASTM B164 and ASME SB164 in hot-worked, annealed, stress-relieved and cold-drawn conditions. Your order for this Monel 400 centreless-ground rod carries heat-number records and EN 10204 3.1 paperwork for goods-in checks. Besides, diameter, condition and finish on the centreless-ground rod are agreed before the heat is booked.
Meanwhile, the chemistry and the design values behind Monel 400 centreless-ground rod sit on our Monel 400 material page for cross-reference.
PRODUCT FEATURES
Key Features of Monel 400 Centreless-Ground Rod
Monel 400 centreless-ground rod arrives in UNS N04400, the solid-solution nickel-copper alloy that holds nickel at 63% and above. We provide ASTM B164 and ASME SB164 centreless-ground rod ground to a tight diameter and straightness band for marine yards, alkylation units and brine plant. Every Monel 400 centreless-ground rod order carries heat-number traceability, EN 10204 3.1 mill test reports and full export documentation.
Monel 400
Flowing-Seawater Resistance
For example, this Monel 400 centreless-ground rod keeps a clean surface in moving seawater, where 300-series stainless pits within a few seasons.
01
Stagnant-Seawater Caution
However, crevices and silt traps under static conditions attack this Monel 400 centreless-ground rod, so design drain-and-flush paths.
02
Hydrofluoric-Acid Capability
Besides, this Monel 400 centreless-ground rod handles hydrofluoric acid across all concentrations, a niche few stainless or nickel grades share.
03
Alkali and Salt Duty
In turn, strong caustic and acid-salt streams suit this Monel 400 centreless-ground rod, so brine hardware holds tolerance longer.
04
Strength from Cold Work
Cold drawing lifts the yield of this Monel 400 centreless-ground rod from the 25 ksi annealed floor toward 85 ksi in light sections.
05
No Age Hardening
Specifically, this Monel 400 centreless-ground rod cannot be precipitation hardened, so cold work sets the strength ceiling.
06
Cryogenic Ductility
Moreover, impact strength in this Monel 400 centreless-ground rod stays flat through sub-zero and cryogenic plant.
07
Welding Without Post-Weld Anneal
Finally, ERNiCu-7 filler joins this Monel 400 centreless-ground rod with no post-weld heat treatment.
08
WHY CHOOSE US
Why Choose Monel 400
Spindles and pins leave no room for diameter drift in Monel 400 centreless-ground rod. Moreover, we confirm the ground tolerance and the straightness of this Monel 400 centreless ground rod before pricing.
01
Duty Read Before Pricing
We record the seawater, acid or alkali conditions your Monel 400 centreless-ground rod will meet before proposing a delivery condition.
02
Certificates Tied to the Heat
Specifically, EN 10204 3.1 papers, heat numbers and PMI records follow each Monel 400 centreless-ground rod delivery.
03
Trial Pieces and Container Lots
In addition, this Monel 400 centreless-ground rod moves through one route whether you need a single length or a full container.
04
Terms Stated in Writing
Quotations for this Monel 400 centreless-ground rod name the condition, section, finish and document set instead of leaving them open.
MANUFACTURING PROCESS
Reliable Production For Critical Applications
Bar production for Monel 400 centreless-ground rod runs from charge weighing to final packing. Our team logs each stage of this Monel 400 centreless-ground rod route against its heat number.
01
Charge Weighing
We weigh refined nickel and cathode copper so this Monel 400 centreless ground rod meets the B164 window.
02
Melting and Refining
First, the charge for this Monel 400 centreless-ground rod melts and refines under controlled practice.
03
Ingot Casting
Next, this Monel 400 centreless-ground rod casts into ingots under controlled solidification.
04
Hot Reduction
Then, forging and rolling reduce the ingot to this Monel 400 centreless-ground rod section.
05
Skin Removal
After that, peeling and grinding strip surface defects from this Monel 400 centreless-ground rod.
06
Condition Heat Treatment
Subsequently, annealing or stress relief sets the ordered condition of this Monel 400 centreless-ground rod.
07
Cold Finishing
We then draw, turn or grind this Monel 400 centreless-ground rod to the ordered size and finish.
08
Testing and Release
Finally, chemistry, tensile and dimensional checks clear this Monel 400 centreless-ground rod for dispatch.
Manufacturing Facility
MANUFACTURING CAPABILITY
Advanced Production For Nickel Alloy Products
Stock lengths and made-to-order lots of Monel 400 centreless-ground rod leave on one schedule. Moreover, we confirm section and finish of this Monel 400 centreless-ground rod before release. Besides, this Monel 400 centreless-ground rod sits inside our Monel 400 bar and rod program.
20,000+ m²
Factory Area
Specifically, melting, forging, drawing and inspection halls serve Monel 400 centreless-ground rod under one roof.
50+
Production Machines
Equipment covering hot working, annealing and cold finishing for this Monel 400 centreless-ground rod.
600 Tons
Monthly Capacity
Monel 400 centreless-ground rod output across stock and made-to-order sizes.
30+
Technical Engineers
Metallurgists who set the condition and document scope of this Monel 400 centreless-ground rod against your duty.
30+ Countries
Export Reach
In addition, documented logistics carry this Monel 400 centreless-ground rod worldwide.
QUALITY ASSURANCE
Strict Quality Control From Production To Delivery
No Monel 400 centreless-ground rod leaves the yard before its heat has cleared our ISO 9001 inspection route. In addition, we check this Monel 400 centreless-ground rod against the chemistry, mechanical properties, dimensions and surface the order names.
01
Heat Identification
We confirm the grade and heat number of this Monel 400 centreless-ground rod against your purchase order.
02
Dimensional Verification
Specifically, the size, length and straightness of this Monel 400 centreless-ground rod go against standard and drawing tolerances.
03
Property Testing
In addition, tensile, hardness and NDT checks run wherever your Monel 400 centreless-ground rod specification requires them.
04
Certificate Assembly
Every consignment of this Monel 400 centreless-ground rod carries EN 10204 3.1 documents keyed to the heat number.
PRODUCT FORMS
Available Product Forms
Conditions and variants of Monel 400 centreless-ground rod cover different machining and service needs. In addition, the list below sets out the Monel 400 Centreless-Ground Rod variants we quote most often.
02
Monel 400 Precision-Ground Rod
Precision-ground rod for the tightest diameter calls.
Request Availability →
03
Monel 400 Ground Hex Bar
Ground hexagons with controlled flats for fittings.
Request Availability →
04
Monel 400 Honed-Finish Rod
Rod honed to your surface finish requirement.
Request Availability →
05
Monel 400 Straightness-Controlled Rod
Rod straightened and checked against a declared runout.
Request Availability →
06
Monel 400 Custom Ground Rod
Custom ground stock finished to your tolerance band.
Request Availability →
APPLICATIONS
Engineered For Demanding Industries
Monel 400 centreless-ground rod is chosen where seawater, hydrofluoric acid or strong alkali decides component life. In addition, the applications below show where this Monel 400 centreless-ground rod serves.
Discuss Your Application →
01
Monel 400 Seawater Pump Spindles
Spindles running in bearings on salt-water duty pumps.
02
Monel 400 Precision Pins
Locating pins holding fit through marine assembly and service.
03
Monel 400 Guide Rods
Rods guiding moving parts in wet and salt-laden equipment.
04
Monel 400 Close-Fit Valve Stems
Stems needing close running fits through packing.
05
Monel 400 Agitator Shafts
Mixer shafts for reactors handling acids and brine.
06
Monel 400 Sensor Housings
Protective housings machined from ground stock.
07
Monel 400 Gauge Hardware
Setting and checking hardware for machine shops.
08
Monel 400 Custom Precision Parts
Bespoke components machined from ground rod.
TECHNICAL INFORMATION
Technical Specifications
Detailed technical information including chemical composition, mechanical properties, standards and available dimensions.
Chemical Composition
UNS N04400 carries nickel as its balance and holds copper inside a 28.0% to 34.0% window, so every heat record for this centreless-ground rod prints a copper figure rather than a grade name. Besides, that window is what keeps the seawater and acid behaviour of this centreless-ground rod repeatable from heat to heat.
For the full element-by-element limit set, open the composition breakdown held on the Monel 400 material page for this centreless-ground rod.
Mechanical Properties
The minimum room-temperature values below apply to UNS N04400 bar in the hot-worked, annealed, stress-relieved and cold-worked conditions per ASTM B164. Consequently, condition and section size govern final acceptance of Monel 400 centreless-ground rod.
| Condition and Section | Tensile Strength, min. | Yield Strength (0.2%), min. | Elongation, min. |
|---|---|---|---|
| Hot-worked, rounds to 305 mm (12 in.) | ≥80 ksi (552 MPa) | ≥40 ksi (276 MPa) | 30% |
| Hot-worked, annealed, all sizes | ≥70 ksi (480 MPa) | ≥25 ksi (170 MPa) | 35% |
| Cold-worked, stress-relieved, rounds 12.7–88.9 mm (1/2–3-1/2 in.) | ≥87 ksi (600 MPa) | ≥60 ksi (415 MPa) | 20% |
| Cold-worked, as-worked, rounds under 12.7 mm (1/2 in.) | ≥110 ksi (760 MPa) | ≥85 ksi (585 MPa) | 8% |
- Hardness plays no part in ASTM B164 acceptance, so the tensile minimums and the ordered edition decide the release, and the section size narrows which row applies.
Physical Properties
Published references place this centreless-ground rod at a density near 8.80 g/cm³ with a melting range of 1300–1350 °C. In addition, the Curie range sits just above ambient, so a centreless-ground rod behaves as a weakly magnetic material near room temperature.
Meanwhile, the physical properties table on the Monel 400 material page holds the thermal conductivity, the electrical resistivity and the remaining design values behind this centreless-ground rod.
Heat Treatment
Monel 400 centreless-ground rod softens by annealing and straightens by a low-temperature relief rather than by aging. In addition, we supply this Monel 400 centreless-ground rod in whichever condition your duty calls for.
| Condition | Typical Treatment |
|---|---|
| Annealed | Held between 870 and 980 °C (1600–1800 °F), then cooled |
| Stress Relieved | 300–320 °C (570–610 °F) for about one hour, then air cooled |
| Custom Condition | Heat treatment according to the agreed specification |
Standards
ASTM B164 is the principal UNS N04400 bar and rod document for this centreless-ground rod, published by ASTM International. Moreover, ASME SB164 covers pressure equipment built from this centreless-ground rod, and AMS 4675 reaches its bar, forging and ring forms.
| Standard | Product or Application |
|---|---|
| ASTM B164 | Nickel-copper rod, bar and wire, UNS N04400 |
| ASME SB164 | ASME counterpart for pressure equipment |
| AMS 4675 | Bars, forgings and rings of this grade |
Finally, the full standards list on the Monel 400 material page adds the European designations, the defence documents and the fastener specifications behind this centreless-ground rod.
Dimensions
Dimensions of Monel 400 centreless-ground rod follow the manufacturing route, the standard and the order quantity. Therefore, the table below lists typical supply ranges, so please confirm your size in the inquiry.
| Product Form | Typical Supply | Length |
|---|---|---|
| Centreless-Ground Rod | 3–100 mm dia., tight tolerance | Cut to length |
| Ground Round Rod | 3–80 mm dia. | Cut to length |
| Precision-Ground Rod | 3–60 mm dia. | Cut to length |
| Ground Hex Bar | 10–60 mm A/F | Cut to length |
| Honed-Finish Rod | To drawing | Custom |
| Custom Ground Rod | To drawing | Custom |
Available sizes of this Monel 400 centreless-ground rod depend on the manufacturing route, the standard, the material condition and the order quantity. Please confirm your required centreless-ground rod size, section and length in the inquiry.
Surface Finishes
Finish decides what the next operation does to this material, whether that is a turning pass, a grinding pass or a welding cell. Specifically, we agree the finish on this Monel 400 centreless-ground rod before we release the order.
| Surface Condition | Typical Use |
|---|---|
| Hot-Worked | As-rolled or as-forged surface on this centreless-ground rod, for parts that will be machined all over. |
| Centreless Ground | Ground diameter and straightness on this centreless-ground rod for shafts and spindles. |
| Polished | Reduced roughness on this centreless-ground rod for product-contact and visible components. |
Meanwhile, the surface finishes table on the Monel 400 material page lists the remaining conditions we quote for this centreless-ground rod.
Related forms from the same heat cover Monel 400 Cold-Drawn Bar, Monel 400 Flat Bar and Monel 400 Forged Bar when your centreless-ground rod order needs them.
TECHNICAL DOCUMENTATION
Download Technical Datasheet
Get detailed information including specifications, standards, dimensions and material properties.
HOW TO START
Start Your Order in 6 Simple Steps
One coordinator carries your Monel 400 centreless-ground rod order from first question to loading. Therefore, most orders for this Monel 400 centreless-ground rod move from quotation to dispatch inside three weeks.
1
Send the Duty Data
Give the size, quantity, standard and the seawater or acid duty your Monel 400 centreless-ground rod will see.
2
Fix the Condition
Then we set the delivery condition and tolerance for this Monel 400 centreless-ground rod.
3
Review the Offer
Receive pricing for this Monel 400 centreless-ground rod by dimension, quantity and destination port.
4
Approve the Order
Approve the specification, terms and schedule for this Monel 400 centreless-ground rod in writing.
5
Witness Points Agreed
Any third-party inspection of this Monel 400 centreless-ground rod is booked before production starts.
6
Dispatch and Documents
Receive this Monel 400 centreless-ground rod with the mill certificate, packing list and shipping papers.
CERTIFICATIONS & QUALITY DOCUMENTATION
Certifications & Quality Documentation
Our production and inspection processes are certified to international standards, and every delivery ships with EN 10204 3.1 mill test certificates.
ISO 9001:2015
Quality Management System
PED 2014/68/EU
Pressure Equipment Directive
ASTM / ASME
Material Standards Compliance
EN 10204 3.1
Mill Test Certificates
FAQ
Frequently Asked Questions
Which standard covers this Monel 400 centreless-ground rod?
ASTM B164 and ASME SB164 govern this Monel 400 centreless-ground rod for UNS N04400 across round, square, hex and rectangular sections.
Is this Monel 400 centreless-ground rod suitable for seawater?
Yes. This centreless-ground rod performs well in flowing seawater, although stagnant water and silt traps raise the pitting risk on this Monel 400 centreless-ground rod.
Can this Monel 400 centreless-ground rod be age hardened?
No. This centreless-ground rod is a solid-solution alloy, so cold work raises its strength and the K-500 grade covers aged duty instead.
Can this Monel 400 centreless-ground rod be machined and welded?
Yes. This centreless-ground rod machines to a clean finish, and GTAW with ERNiCu-7 filler joins it without a post-weld anneal.
How is the price of this Monel 400 centreless-ground rod calculated?
Pricing follows weight for this Monel 400 centreless-ground rod, with the nickel and copper quotations fixed on the date you receive the offer.
What is your MOQ for this Monel 400 centreless-ground rod?
A single piece covers many common sizes of this Monel 400 centreless-ground rod.
What are your trade terms for this Monel 400 centreless-ground rod?
FOB covers most orders for this Monel 400 centreless-ground rod, and EXW or CIF terms are available when you ask.
What is the lead time for this Monel 400 centreless-ground rod?
Stock sizes of this Monel 400 centreless-ground rod dispatch in 7 to 15 days, while made-to-order sections take longer.
Do you provide EN 10204 3.1 or 3.2 certificates for this Monel 400 centreless-ground rod?
Yes. Every heat of this Monel 400 centreless-ground rod ships with 3.1, and a 3.2 endorsement is booked through the order.
What information should an enquiry for this Monel 400 centreless-ground rod include?
Please send the grade, section, diameter, length, condition, finish, quantity and destination so we can quote this Monel 400 centreless-ground rod accurately.
